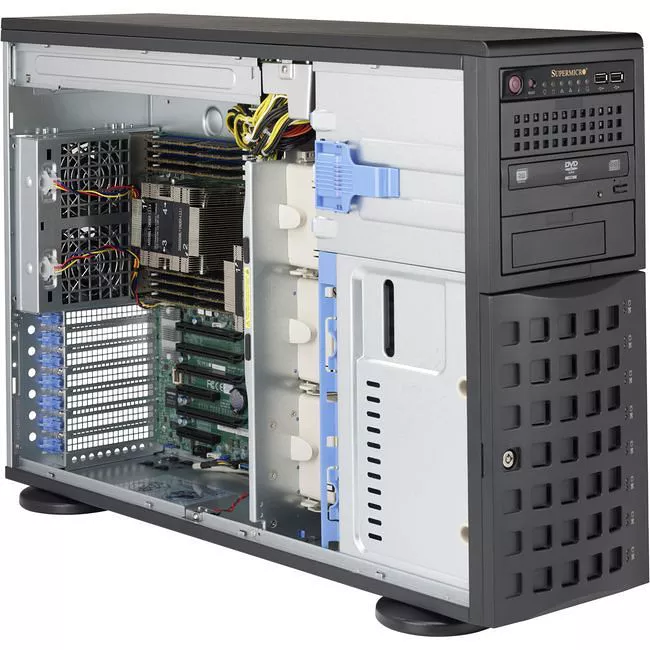

Supermicro SYS-7049P-TRT 4U Server
MPN # SYS-7049P-TRT
Condition: New
Product highlights:
- Processor Supported: 2x Intel Xeon Scalable Family
- Drive Bays: 8x 3.5" Hot-Swap
- Supports up to 3x Double-Wide cards
- Rack Height: 4U Rack Mount / Tower
Need Help? let's talk about it.
The Supermicro SYS-7049P-TRT is based on the Intel Xeon Scalable family. It offers eight 3.5" hot-swappable drive bays, two 10GBASE-T ethernet LAN ports, and support for up to three double-wide PCI-E cards..
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Number of UPI links
2
Thermal Design Power (TDP)
205 W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
4 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
SATA3
- Via C621 chipset
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
- 10GBASE-T
I/O Expansions
PCI Express
- 4x PCI-E 3.0 x16 slots (Supports 3x double-wide cards)
- 2x PCI-E 3.0 x8 slots
- 1x PCI-E 3.0 x4 M.2 slot
Drive Bays
Hot-swap
- 8x 3.5" Hot-swap drive bays
Peripheral
- 3x 5.25" Peripheral drive bays
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 3.0 Ports
2 (rear)
Number of USB 2.0 Ports
4 (2x front, 2x rear)
Number of SATA Interfaces
8
Number of M.2 Interfaces
1
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes (1+1)
Maximum Power Supply Wattage
1280 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
29"
