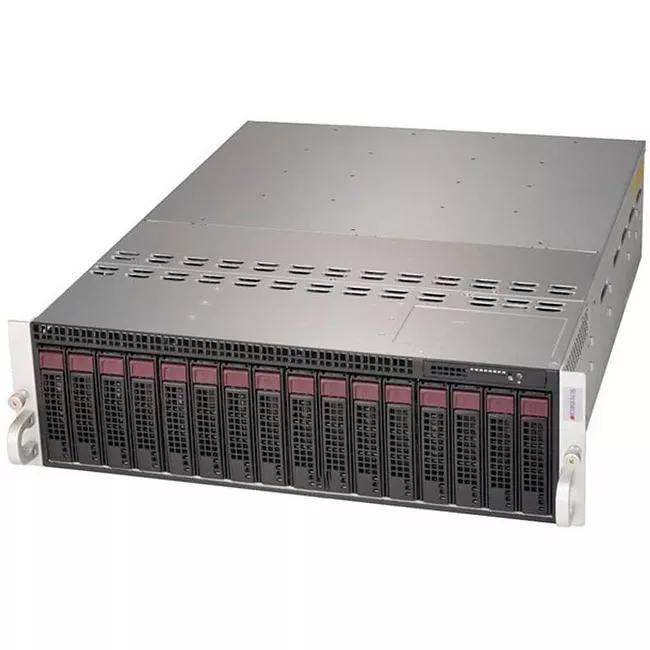

Supermicro SYS-5039MP-H8TNR 3U 8x Node Server

Please log in to add an item to your wishlist. MPN: SYS-5039MP-H8TNR

Supermicro SYS-5039MP-H8TNR 3U 8x Node Server

Highlights

Overview

Specifications

The Supermicro SYS-5039MP-H8TNR is based on the Intel Xeon Scalable family processor. It features eight nodes, each with two 3.5" Hot-Swap drives.

Specifications

Processor & Chipset (per node)

Number of Nodes

Number of Processors Supported

Processor Socket

Socket P LGA-3647

Processor Type

Xeon

Processor Supported

Bronze 31XX
Bronze 32XX
Silver 41XX
Silver 42XX
Gold 51XX
Gold 52XX
Gold 61XX
Gold 62XX
Platinum 81XX
Platinum 82XX

Thermal Design Power (TDP)

165W

Memory (Per node)

Maximum Memory

1 TB

Memory Technology

DDR4 SDRAM
DDR4 NVDIMM (Intel Optane DCPMM)

Memory Standard

DDR4-2933/PC4-23400

Number of Total Memory Slots

Controllers (Per node)

Controller Type

SATA3

Display & Graphics (Per node)

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500 BMC

Network & Communication (Per node)

Ethernet Technology

1000BASE-T

I/O Expansions (Per node)

PCI Express

1x PCI-E 3.0 x16 slot (Low Profile)
1x PCI-E 3.0 x8 slot (Micro Low Profile)
2x PCI-E 3.0 x4 M.2 slot (2280)

Drive Bays (Per node)

Hot-swap

2x 3.5" Hot-Swap

Interfaces/Ports

Total Number of USB Ports

Number of USB 2.0 Ports

2 (KVM dongle)

Number of SATA Interfaces

LAN

2x RJ45 Ethernet Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA Connector

COM / Serial

1x COM (KVM dongle)

Power Description

Number of Power Supplies

Maximum Power Supply Wattage

2200 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

5.21"

Width

17.26"

Depth

23.2"
