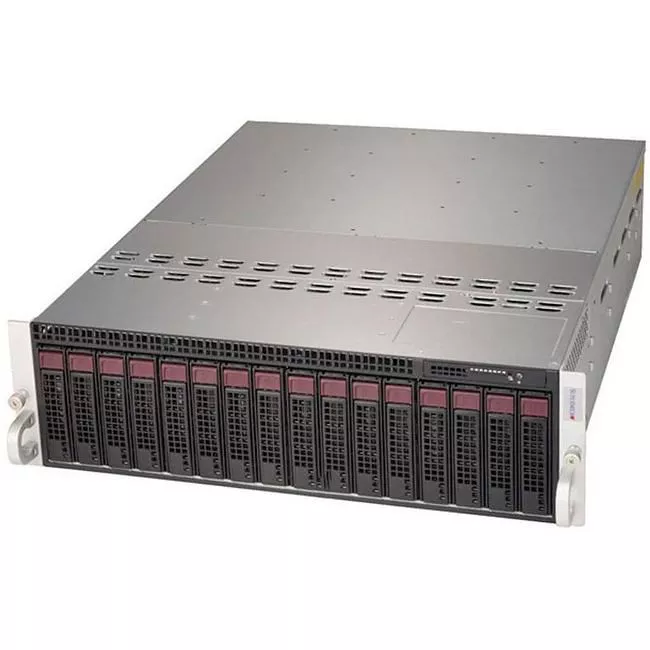

Supermicro SYS-5039MD18-H8TNR 3U 8x Node Server
MPN # SYS-5039MD18-H8TNR
Condition: New
Product highlights:
  • Number of Nodes: 8
  • Processor (Per Node): 1x Intel Xeon D-2191
  • Drive Bays (Per Node): 2x 3.5" Hot-Swap
  • Rack Height: 3U
Contact sales for pricing
Need Help?   let's talk about it.

The Supermicro SYS-5039MD18-H8TNR is based on the Intel Xeon D-2191 processor. It features eight nodes, each with two hot-swappable 3.5" SATA3 drive bays, one PCIe 3.0 x16 low-profile and one PCIe 3.0 x8 micro-LP slot.

Processor & Chipset (Per Node)
Number of Processors Supported
1
Processor Socket
FCBGA2518
Processor Type
Xeon
Processor
  • D-2191
Thermal Design Power (TDP)
Up to 86W
Memory (Per Node)
Maximum Memory
512 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
4
Controllers (Per Node)
SATA3
  • Via SoC
Display & Graphics (Per Node)
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication (Per Node)
Ethernet Technology
  • 1000BASE-T
I/O Expansions (Per Node)
PCI Express
  • 1x PCI-E 3.0 x16 slot (Low-Profile)
  • 1x PCI-E 3.0 x8 slot (Micro LP)
  • 1x PCI-E 3.0 x4 M.2 slot (2280/22110)
Drive Bays (Per Node)
Hot-swap
  • 2x 3.5" Hot-swap drive bays
Interfaces/Ports (Per Node)
Total Number of USB 2.0 Ports
2 (KVM dongle)
Number of SATA Interfaces
2
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
COM / Header
1 COM (KVM dongle)
Onboard Video
1x VGA Connector (KVM dongle)
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1600 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
5.2"
Width
15.26"
Depth
23"
