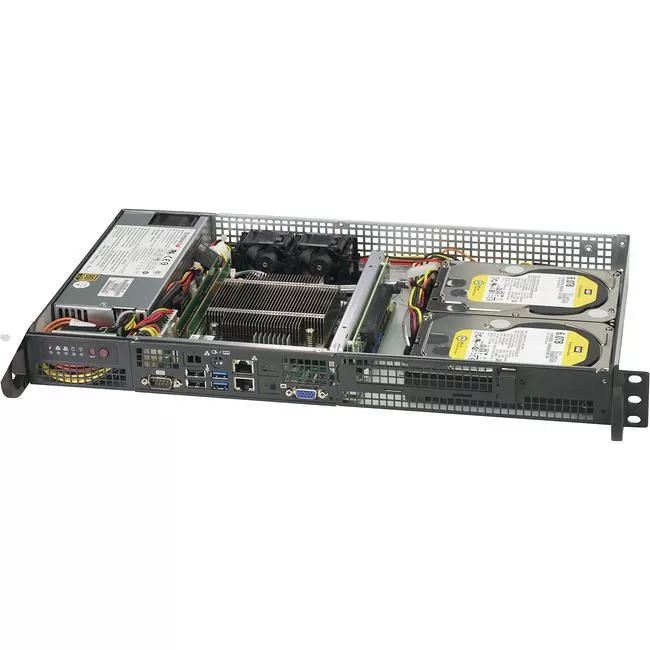

Supermicro SYS-5019C-FL 1U Server

Please log in to add an item to your wishlist. MPN: SYS-5019C-FL

Supermicro SYS-5019C-FL 1U Server

Highlights

Overview

Specifications

The Supermicro SYS-5019C-FL is based on the Intel Socket H4 LGA-1151 family. It features two 3.5" internal drives and support for one PCI-E 3.0 x4 M.2 slot.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket H4 LGA-1151

Processor Type

Xeon
Core
Pentium
Celeron

Processor Supported

E-2100
Core i3
Pentium
Celeron

Memory

Maximum Memory

64 GB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2666/PC4-21300

Number of Total Memory Slots

Controllers

SATA3

Via C242 Chipset
RAID 0, 1, 5, 10

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500 BMC

Network & Communication

Ethernet Technology

1000BASE-T

Number of Network (RJ-45) Ports

I/O Expansions

PCI Express

1x PCI-E 3.0 x16 slot (Front, Full-height, Half-Length)
1x PCI-E 3.0 x4 M.2 slot (2280)

Drive Bays

Internal

2x 3.5" Hot-swap drive bays

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.1 Ports

2 (front)

Number of USB 2.0 Ports

2 (front)

Number of SATA Interfaces

Number of M.2 Interfaces

LAN

2x RJ45 1000BASE-T Ethernet LAN Port (front)
1x RJ45 Management Port (front)

Onboard Video

1 VGA (front)

Serial / Header

2 (front, header)

TPM

1 TPM 2.0 Header

Power Description

Number of Power Supplies

Maximum Power Supply Wattage

200 W

Certification

80 Plus Gold

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

1.7"

Width

17.2"

Depth

9.8"
