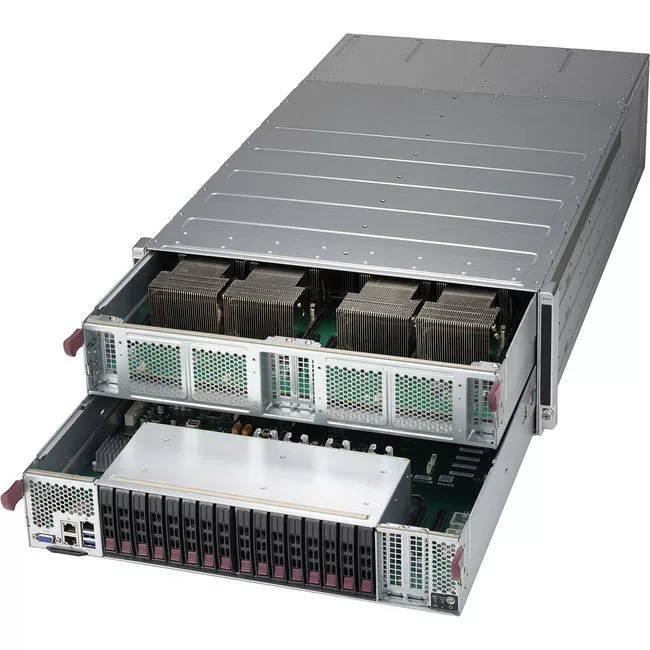

Supermicro SYS-4029GP-TXRT 4U Server
MPN # SYS-4029GP-TXRT
Condition: New
Product highlights:
  • Processor Supported: 2x Intel Xeon processor Scalable Family
  • Drive Bays: 16x 2.5" Hot-Swap
  • Supports up to 8x NVIDIA Tesla P100 SXM2 GPUs
  • Rack Height: 4U
Contact sales for pricing
Need Help?   let's talk about it.

The Supermicro SYS-4029GP-TXRT is based on the Intel Xeon processor Scalable family. It features sixteen hot-swappable 2.5" drive bays and eight NVIDIA Tesla P100 SXM2 GPUs.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI links
3
GPU
8x NVIDIA Tesla SXM2
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
6 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
SATA3
  • Via C621 chipset
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots (For RDMA via EDR)
  • 2x PCI-E 3.0 x8 slots
Drive Bays
Hot-swap
  • 16x 2.5 hot-swap drive bays
  • Supports up to 8x NVMe drives
Interfaces/Ports
Total Number of USB Ports
3
Number of USB 3.0 Ports
3
Number of SATA Interfaces
N/A
Number of M.2 NVMe slots
1
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.6"
Depth
31.7"
