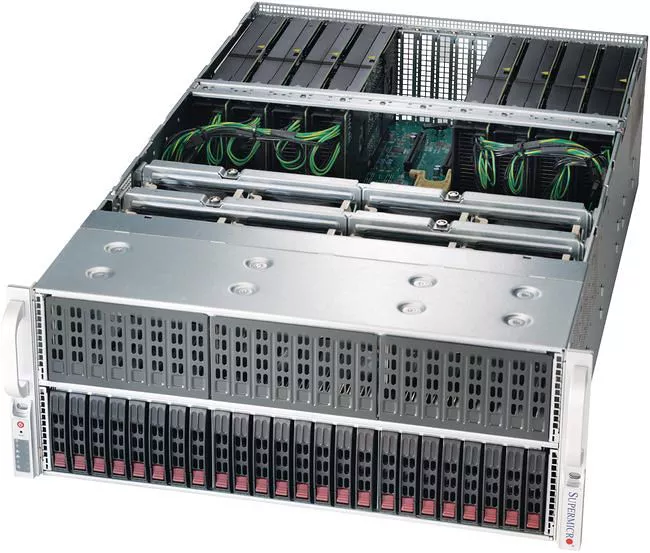

Supermicro SYS-4028GR-TR 4U Rackmount Barebone - Intel C612 - 2X Socket LGA 2011-v3 - 8X GPU

MPN # SYS-4028GR-TR UPC # 672042188901
Condition: New
Product highlights:
  • GPU Supported: 8
  • Processor Socket: Socket LGA 2011-v3
  • Maximum Memory: 1.50 TB
  • Memory Standard: DDR4-2133/PC4-17000
$3,399.99

Need Help?

let's talk about it.
Designed for optimal performance, the dual-processor SuperServer 7048 series and the uni-processor SuperServer 5048 series support the QPI (9.6 GT/s) format Xeon® E5-2600 v3 Family processors in a high-density 4U form-factor. The 7048 SuperServer have excellent expansion capability and feature set while 5048 SuperServer is optimized as storage powerhouse.
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-4028GR-TR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
4028GR-TR
Product Name
SuperServer 4028GR-TR (Black)
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
24
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
24
Number of Internal 2.5" Bays
24
Number of Total Expansion Slots
11
Number of PCI Express x16 Slots
11
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Number of SATA Interfaces
4
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    4
    Maximum Power Supply Wattage
    1600 W
    Physical Characteristics
    Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    7"
    Width
    17.2"
    Depth
    29"
    Weight (Approximate)
    79.81 lb
    Miscellaneous
    Package Contents
    • SuperServer 4028GR-TR (Black)
    • 1 x Super X10DRG-O+-CPU Motherboard
    • 1 x CSE-418GTS-R3200B Chassis
    • 1 x Mylar CPU air shroud for SC418G (X9DRG-OF-CPU),PBF
    • 1 x Mylar PCIe air shroud for SC418G (X9DRG-O-PCIE),PBF
    • 1 x 24x 2.5"HDD backplane, support SAS-3 12Gb/s,mini-SAS HD connector,new 29-pin SAS-3 receptacles,support power control stagger spin,pre-charge resistor,fuse protect and SGPIO encl mgmt,RoHS/REACH,PBF
    • 2 x HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG
    • 8 x 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG,HF,RoHS/REACH,PBF
    • 2 x cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF
    • 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
    • 1 x SYS-4028GR-TR(T) Quick Reference Guide,HF,RoHS/REACH
    • 4 x RSC-X9DRG-O
    • 2 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
    • 4 x 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
    • 8 x 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Warranty
    Limited Warranty
    3 Year
