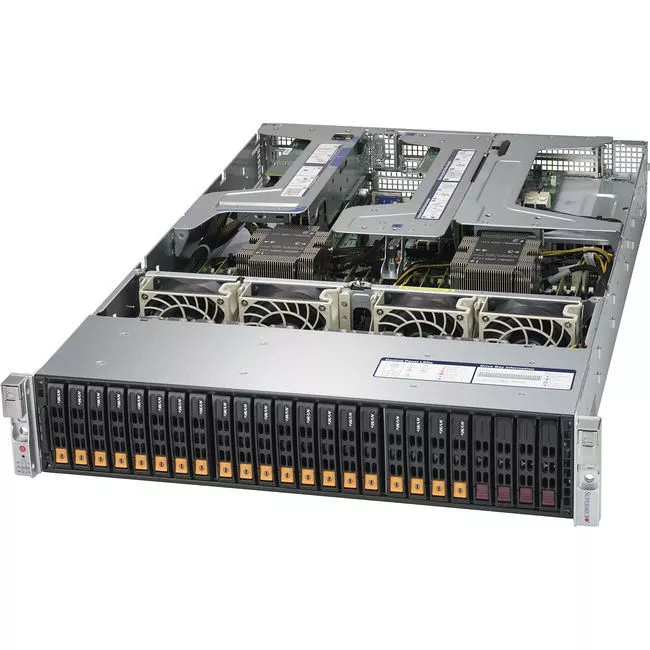

Supermicro SYS-2029UZ-TN20R25M 2U Server

Please log in to add an item to your wishlist. MPN: SYS-2029UZ-TN20R25M

Supermicro SYS-2029UZ-TN20R25M 2U Server

Highlights

Overview

Specifications

The Supermicro SYS-2029UZ-TN20R25M is based on the Intel Xeon Scalable family processor. It features twenty-four 2.5" hot-swap drive bays and two 25GbE SFP28 ports.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 3647

Processor Type

Xeon

Processor Supported

Bronze 31XX
Silver 41XX
Gold 51XX
Gold 61XX
Platinum 81XX
Bronze 32XX
Silver 42XX
Gold 52XX
Gold 62XX
Platinum 82XX

Thermal Design Power (TDP)

Up to 205W

Chipset Manufacturer

Intel

Chipset Model

C621

Memory

Maximum Memory

6 TB

Memory Technology

DDR4 SDRAM
DDR4 NVDIMM (Intel Optane DCPMM)

Memory Standard

DDR4-2933/PC4-23400

Number of Total Memory Slots

Controllers

Controller Type

SATA3

RAID Supported

Yes

RAID Levels

0, 1, 5, 10

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500 BMC

Network & Communication

Ethernet Technology

25GbE

Number of Network (SFP28) Ports

I/O Expansions

PCI Express

1x PCI-E 3.0 x8 slot (Low-profile)
1x M.2 PCI-E 3.0 x4 slot (2240/2260/2280/22110)

Drive Bays

Hot-Swap

24x 2.5" Hot-Swap Drive Bays
20 NVMe + 4 SAS3/SATA3

Interfaces/Ports

Total Number of USB 3.0 Ports

3 (2x rear, 1x Type A)

Number of SATA Interfaces

LAN

2x 25GbE SFP28 Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA

Serial Port / Header

1 (header)

DOM

2 Disk on Module port

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

1600 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

3.5"

Width

17.2"

Depth

27.76"
