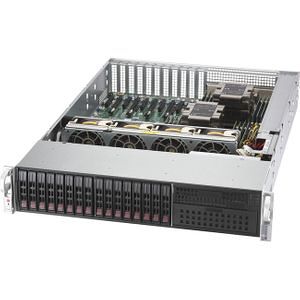

Supermicro SYS-2029P-TXRT 2U Server
Highlights
Overview
Specifications
The Supermicro SYS-2029P-TXRT is based on the Intel Xeon Scalable family processor. It features sixteen 2.5" hot-swap drives and two 10GBASE-T LAN ports.
Overview
The Supermicro SYS-2029P-TXRT is based on the Intel Xeon Scalable family processor. It features sixteen 2.5" hot-swap drives and two 10GBASE-T LAN ports.
Specifications
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
- Xeon
Processor Supported
- Bronze 31XX
- Silver 41XX
- Gold 51XX
- Gold 61XX
- Platinum 81XX
- Bronze 32XX
- Silver 42XX
- Gold 52XX
- Gold 62XX
- Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
4 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
Controller Type
- SATA3 (via Intel C621 Chipset)
RAID Supported
Yes
RAID Levels
- 0, 1, 5, 10 (SATA3)
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ45) Ports
2
I/O Expansions
PCI Express
- 2x PCI-E 3.0 x16 slots (Low-Profile)
- 2x PCI-E 3.0 x16 or 4x PCI-E 3.0 x8 slots (Low-Profile)
- 4x PCI-E 3.0 x8 slots (Low-Profile)
- 1x PCI-E 3.0 x4 (in x8 slot, Low-Profile)
- 1x PCI-E 3.0 x4 (in x8 slot, Low-Profile)
- 1x PCI-E 3.0 x4 M.2 slot (2280)
Drive Bays
Hot-Swap
- 16x 3.5" Hot-Swap Drive Bays (8x SATA3, 8x SAS3)
Interfaces/Ports
Total Number of USB 3.0 Ports
2 (rear)
Total Number of USB 2.0 Ports
2 (rear)
Number of SATA Interfaces
8
Number of M.2 Interfaces
1
LAN
- 2x 10GBASE-T RJ45 Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
- 1x VGA
Serial Port / Header
1 COM ports (rear)
TPM
1 TPM 2.0 Header
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Depth
25.6"
