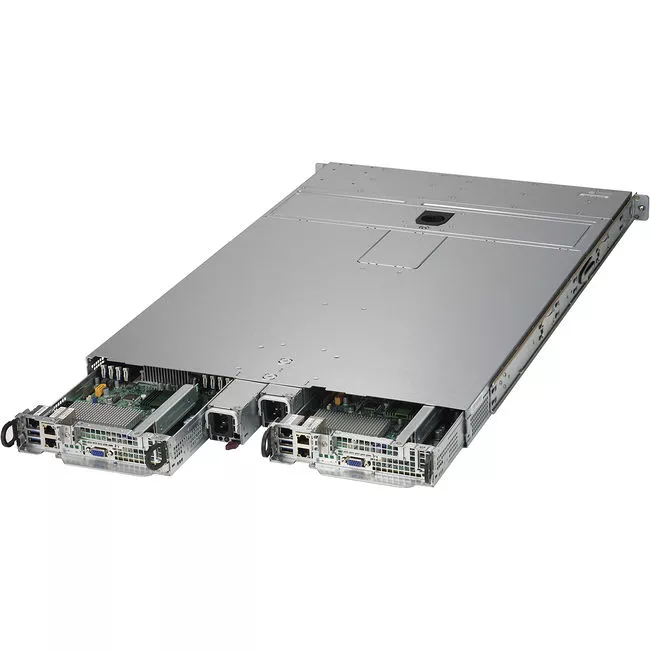

Supermicro SYS-1028TP-DC0TR 1U 2x Node Server

MPN # SYS-1028TP-DC0TR
Condition: New
Product highlights:
  • Number of Nodes: 2
  • Processor (per node): 2x Intel Xeon E5-2600 v3/v4
  • Drive Bays (per node): 4x 2.5" SAS3 Hot-Swap
  • Rack Height: 1U
Contact sales for pricing

Need Help?

let's talk about it.
sales@sabrepc.com408.914.8196

The Supermicro SYS-1028TP-DC0TR is based on the Intel Xeon E5-2600 v3/v4 processor families. It features two nodes, each with four 2.5" Hot-Swappable drive bays, and a Broadcom 3008 SAS3 controller per node.

Processor & Chipset
Number of Nodes
2
Number of Processors Supported (per node)
2
Processor Socket
LGA 2011-3
Processor Type
Xeon
Processor Supported
  • E5-2600 v3
  • E5-2600 v4
E5-2600 v3/v4
Thermal Design Power (TDP)
Up to 145W
Chipset Manufacturer
Intel
Chipset Model
C612
Memory (per node)
Maximum Memory
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
SAS3
  • Via Broadcom 3008
  • RAID 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400 BMC
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions (per node)
PCI Express
  • 1x PCI-E 3.0 x16 slot (Low-profile)
Drive Bays (per node)
Hot-swap
  • 4x 2.5" Hot-swap drive bays
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SAS Interfaces
4
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 IPMI LAN Port
Onboard Video
1x VGA Connector
Serial Port/Header
  • 1x Fast UART 16550 port (header)
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
28.25"
