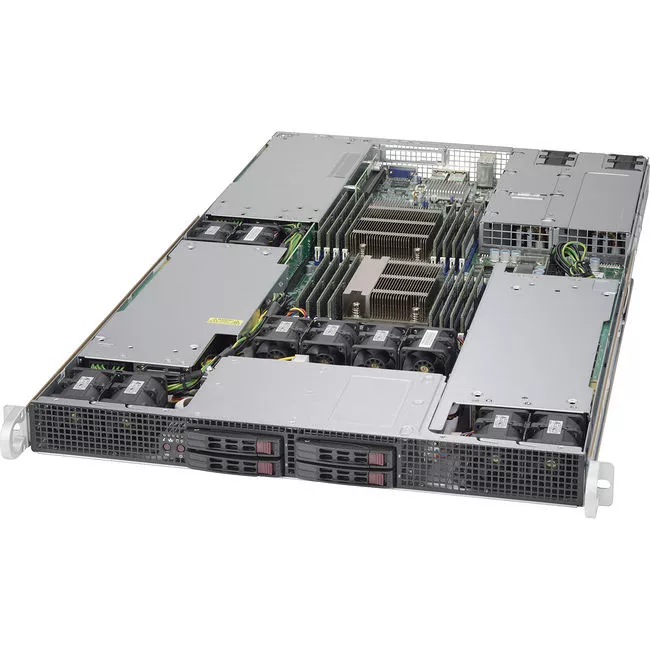

Supermicro SYS-1028GR-TR 1U Server

MPN # SYS-1028GR-TR
Condition: New
Product highlights:
  • Processor Supported: 2x Intel E5-2600 v3/v4
  • Drive Bays: 4x 2.5" Hot-Swap
  • Supports up to 3x Double-Wide cards
  • Rack Height: 1U
Contact sales for pricing

Need Help?

let's talk about it.

The Supermicro SYS-1028GR-TR is based on the Intel Xeon E5-2600 v3/v4 families. It offers four hot-swappable 2.5" drive bays and support for up to three Double-Wide cards.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 2011-3
Processor Type
Xeon
Processor Supported
  • E5-2600 v3
  • E5-2600 v4
Thermal Design Power (TDP)
Up to 145W
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots (supports 3x double-wide cards)
  • 1x PCI-E 3.0 x8 slot (in x16, low-profile)
Drive Bays
Hot-swap
4x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 3.0 Ports
4 (2x rear, 2x header)
Number of USB 2.0 Ports
2 (2x header)
Number of SATA Interfaces
10
LAN
  • 2x RJ45 Gigabit Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port
1x Serial Header
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1600 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
30.6"
