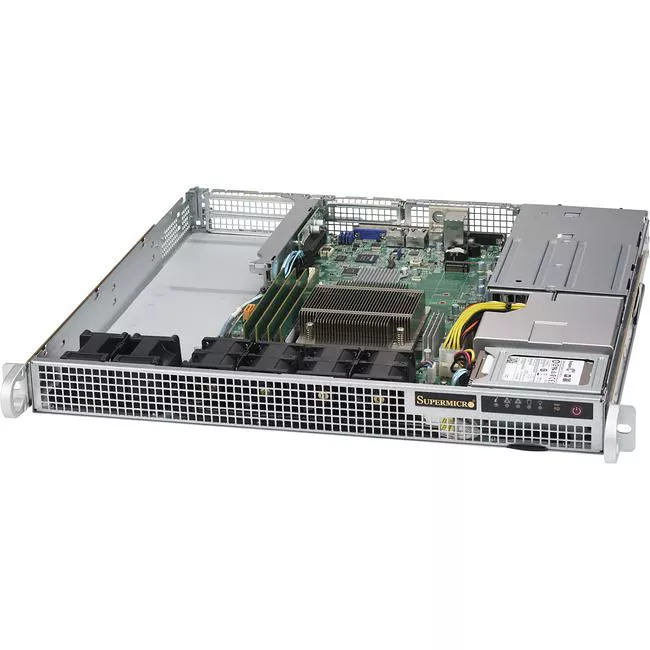

Supermicro SYS-1019S-WR 1U Server

MPN # SYS-1019S-WR
Condition: New
Product highlights:
  • Processor: 1x Intel Celeron, Pentium, Core i3, or Xeon E3-1200 v5/v6
  • Drive Bays: 4x 3.5" Hot-swap drives
  • 400 W Redundant Power Supply
  • Rack Height: 1U
Contact sales for pricing

Need Help?

let's talk about it.

The Supermicro SYS-1019S-WR is based on the Intel Celeron, Pentium, Core i3, or Xeon E3-1200 v5/v6 processor. It features two 2.5" internal drive bays and 400 W redundant power supplies.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 1151
Processor Type
  • Celeron
  • Pentium
  • Core
  • Xeon
Processor Supported
  • Celeron
  • Pentium
  • Core i3
  • E3-1200 v5
  • E3-1200 v6
Thermal Design Power (TDP)
Up to 80W
Chipset Model
C236
Memory
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-17000
Number of Total Memory Slots
4
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400 BMC
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 1x PCI-E 3.0 x16 or 2x PCI-E 3.0 x8 slot(s)
  • 1x PCI-E 3.0 x4 (in x8) slot
Drive Bays
Internal
  • 2x 2.5" Drive Bays
Interfaces/Ports
Total Number of USB 3.0 Ports
2 (rear)
Total Number of USB 2.0 Ports
2 (rear)
Number of SATA Interfaces
6
LAN
  • 2x RJ45 1000BASE-T LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
  • 1x VGA
Serial Port / Header
1 (rear)
DOM
2 Disk on Module port
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
400 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
16.9"
