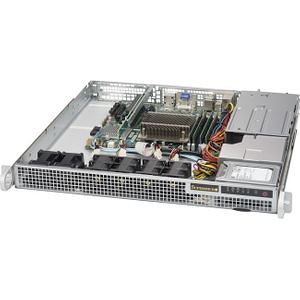

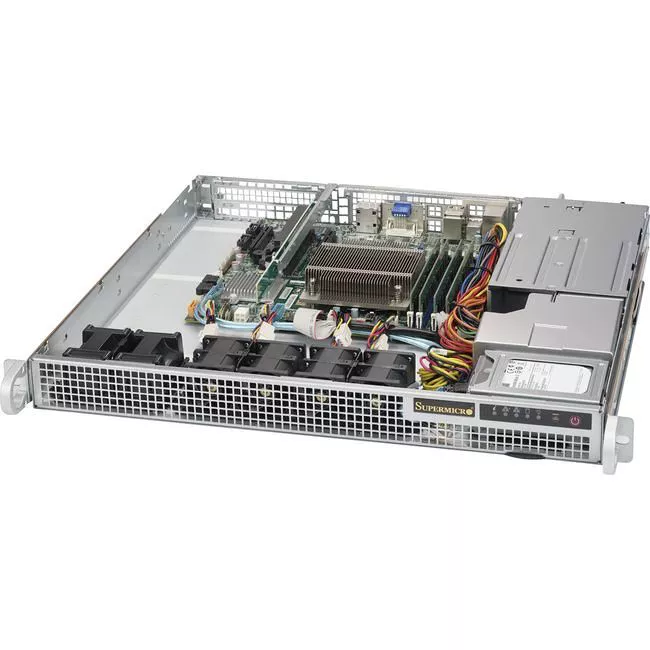

Supermicro SYS-1019S-M2 1U Server

Please log in to add an item to your wishlist. MPN: SYS-1019S-M2

Supermicro SYS-1019S-M2 1U Server

Highlights

Overview

Specifications

The Supermicro SYS-1019S-M2 is based on the Intel Celeron, Pentium, or Core i3/i5/i7,processor. It features two 2.5" internal drive bays and one PCI-E 3.0 x16 slot.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 1151

Processor Type

Celeron
Pentium
Core

Processor Supported

Celeron
Pentium
Core i3
Core i5
Core i7

Thermal Design Power (TDP)

Up to 80W

Chipset Model

Q170 Express

Memory

Maximum Memory

64 GB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2400/PC4-17000

Number of Total Memory Slots

Controllers

Controller Type

SATA3

RAID Supported

Yes

RAID Levels

0, 1

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2400 BMC

Network & Communication

Ethernet Technology

1000BASE-T

Number of Network (RJ-45) Ports

I/O Expansions

PCI Express

1x PCI-E 3.0 x16 slot

Drive Bays

Internal

2x 2.5" Drive Bays

Interfaces/Ports

Total Number of USB 3.0 Ports

2 (rear)

Total Number of USB 2.0 Ports

3 (2x rear, 1x Type A)

Number of SATA Interfaces

LAN

2x RJ45 1000BASE-T LAN Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

2x DisplayPort
1x DVI-I
1x VGA

Serial Port / Header

2 (header)

DOM

1 Disk on Module port

Power Description

Number of Power Supplies

Redundant Power Supplies

Maximum Power Supply Wattage

340 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

1.7"

Width

17.2"

Depth

16.9"
