Supermicro SYS-1019P-WTR 1U Server

Please log in to add an item to your wishlist. MPN: SYS-1019P-WTR

Supermicro SYS-1019P-WTR 1U Server

Highlights

Overview

Specifications

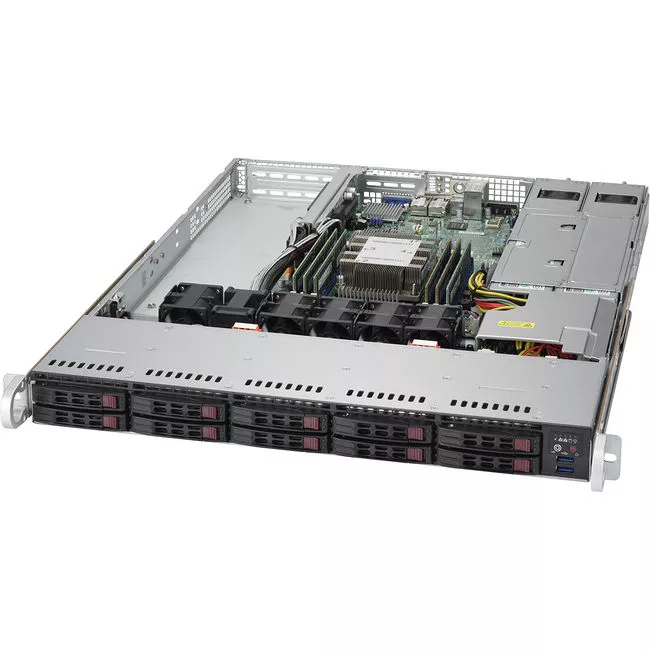

The Supermicro SYS-1019P-WTR is based on the Intel Xeon processor Scalable family. It features ten 2.5" Hot-Swappable drive bays, and two 10GBASE-T Ethernet LAN ports.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

LGA 3647

Processor Type

Xeon

Processor Supported

Bronze 31XX
Bronze 32XX
Silver 41XX
Silver 42XX
Gold 51XX
Gold 52XX
Gold 61XX
Gold 62XX
Platinum 81XX
Platinum 82XX

Thermal Design Power (TDP)

Up to 205W

UPI

2 UPI up to 10.4GT/s

Chipset Manufacturer

Intel

Chipset Model

C622

Memory

Maximum Memory

1.5 TB

Memory Technology

DDR4 SDRAM
DDR4 NVDIMM (Intel Optane DCPMM)

Memory Standard

DDR4-2933/PC4-23400

Number of Total Memory Slots

Controllers

Controller Type

SATA3

RAID Supported

Yes

RAID Levels

0, 1, 5, 10

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2500 BMC

Network & Communication

Ethernet Technology

1000BASE-T

Number of Network (RJ-45) Ports

I/O Expansions

PCI Express

2x PCI-E 3.0 x16 slot (Full-height, Full-length)
1x PCI-E 3.0 x8 slot (Low-profile)

Drive Bays

Hot-swap

10x 2.5" Hot-swap drive bays

Interfaces/Ports

Total Number of USB 2.0 Ports

2 (rear)

Total Number of USB 3.0 Ports

2 (rear)

Number of SATA Interfaces

LAN

2x RJ45 10GBASE-T LAN Ports
1x RJ45 Dedicated IPMI Port

Onboard Video

1x VGA

Serial Port

2x COM port (header)

DOM

2x Disk on module ports

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

500 W

Certification

80 Plus Platinum

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

1.7"

Width

17.2"

Depth

23.5"
