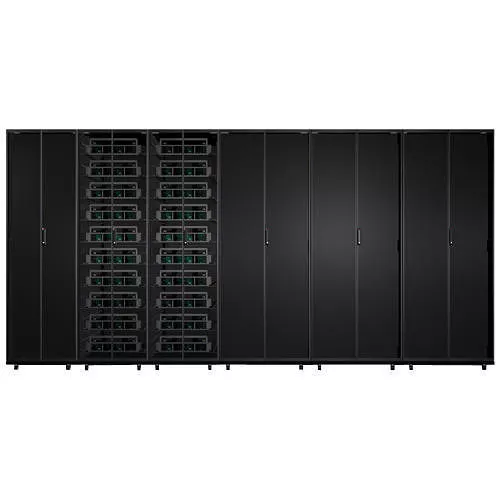

APC SY300K500D Symmetra PX 300kW Scalable to 500kW w/o Maint. Bypass or Dist.-Parallel Capable

MPN # SY300K500D
Availability: In Stock
Condition: New
Product highlights:
  • Backup/Run Time (Full Load): 7 Minute
  • Output Voltage: 400 V AC | 480 V AC
  • Receptacles: 1 x Hard Wire 4-wire | 1 x Hard Wire 5-wire
  • Subcategory: UPS

Need Help?

let's talk about it.

The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.

General Information
Schneider Electric SA
Manufacturer Part Number
Manufacturer Website Address
Brand Name
APC by Schneider Electric
Product Line
Product Series
Product Model
Product Name
Symmetra PX SY300K500D 300kVA Tower UPS
Product Type
Dual Conversion Online UPS
Technical Information
Plug/Connector Type
  • Hard Wire 4-wire
  • Hard Wire 5-wire
  • Receptacles
  • 1 x Hard Wire 4-wire
  • 1 x Hard Wire 5-wire
  • Power Description
    Load Capacity
    300 kVA/300 kW
    Input Voltage
    220 V AC
    Output Voltage
  • 400 V AC
  • 480 V AC
  • Input Frequency
    40 Hz to 70 Hz
    Output Frequency
    50 Hz to 60 Hz
    Network Management
    SNMP Manageable
    Bypass Switch
  • Maintenance
  • Static
  • Automatic
  • Internal
  • Manual
  • Interfaces/Ports
    Modular Slots
  • 24 x Battery
  • 3 x SmartSlot
  • Battery Information
    Battery Chemistry
    Sealed Lead Acid (SLA)
    Backup/Run Time (Full Load)
    7 Minute
    Backup/Run Time (Half Load)
    19 Minute
    Typical Battery Recharge Time
    3.50 Hour
    Physical Characteristics
    Form Factor
    14.6 ft
    Weight (Approximate)
    13162 lb
    Package Contents
    • Symmetra PX SY300K500D 300kVA Tower UPS
    • 20 x Battery Module
    • Assembly Service
    • Installation Guide
    • Network Management Card
    • Start-Up Service
    • User Manual
    Energy Star
    Environmentally Friendly
    Environmental Certification
    Limited Warranty
    1 Year
