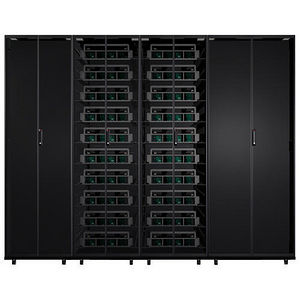

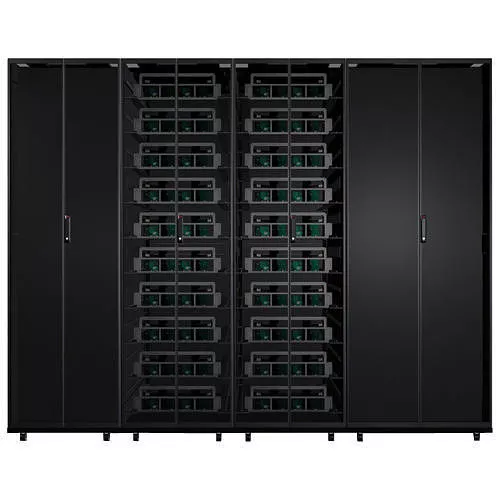

APC SY125K500D Symmetra PX 125kW Scalable to 500kW w/o Maint. Bypass & Dist.-Parallel Capable

MPN # SY125K500D
Availability: In Stock
Condition: New
Product highlights:
  • Backup/Run Time (Full Load): 6 Minute
  • Output Voltage: 400 V AC | 480 V AC
  • Receptacles: 1 x Hard Wire 4-wire | 1 x Hard Wire 5-wire
  • Subcategory: UPS
$75,702.14

Need Help?

let's talk about it.

The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.

General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SY125K500D
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Series
PX
Product Model
SY125K500D
Product Name
Symmetra PX SY125K500D 125kVA Tower UPS
Product Type
Dual Conversion Online UPS
Technical Information
Plug/Connector Type
  • Hard Wire 4-wire
  • Hard Wire 5-wire
  • Receptacles
  • 1 x Hard Wire 4-wire
  • 1 x Hard Wire 5-wire
  • Power Description
    Load Capacity
    125 kVA/125 kW
    Input Voltage
    220 V AC
    Output Voltage
  • 400 V AC
  • 480 V AC
  • Input Frequency
    40 Hz to 70 Hz
    Output Frequency
    50 Hz to 60 Hz
    Management
    Network Management
    SNMP Manageable
    Bypass Switch
  • Maintenance
  • Static
  • Automatic
  • Internal
  • Manual
  • Interfaces/Ports
    Modular Slots
    3 x SmartSlot
    Battery Information
    Battery Chemistry
    Sealed Lead Acid (SLA)
    Backup/Run Time (Full Load)
    6 Minute
    Backup/Run Time (Half Load)
    18 Minute
    Typical Battery Recharge Time
    3.50 Hour
    Physical Characteristics
    Form Factor
    Tower
    Height
    78.4"
    Width
    116.1"
    Depth
    42.1"
    Weight (Approximate)
    6300.22 lb
    Miscellaneous
    Package Contents
    • Symmetra PX SY125K500D 125kVA Tower UPS
    • 8 x Battery Module
    • Assembly Service
    • Installation Guide
    • Network Management Card
    • Start-Up Service
    • User Manual
    Energy Star
    Yes
    Environmentally Friendly
    Yes
    Environmental Certification
    ENERGY STAR
    Warranty
    Limited Warranty
    1 Year
