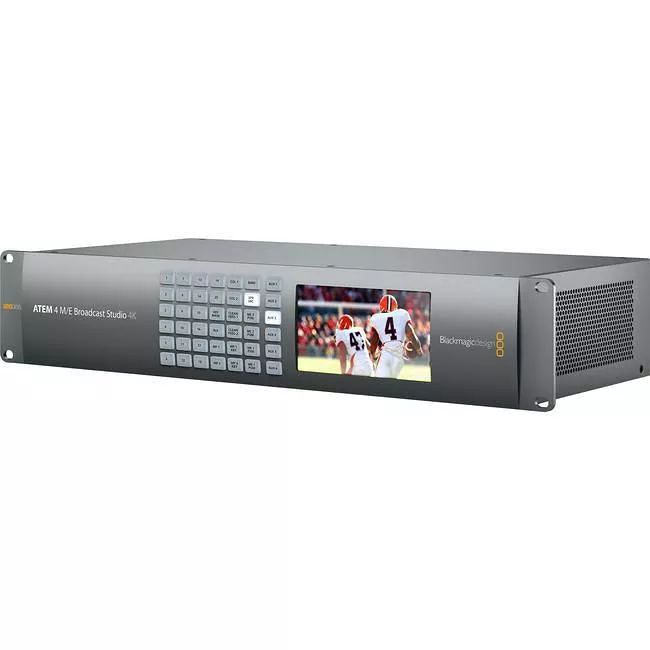

Blackmagic Design SWATEMRRW4ME4K ATEM 4 M/E Broadcast Studio 4K
MPN # SWATEMRRW4ME4K
UPC # 9 338716 005356
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Video Mixer
  • Form Factor: Rack-mountable
  • Condition: New
  • Category: Video Cards and Devices
$5,995.00
FREE SHIPPING
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

Get one of the world's most compact and advanced switchers with the new ATEM 4 M/E Broadcast Studio 4K. You get an incredibly high performance live production switcher designed to work with the latest formats and high frame rates, all the way up to Ultra HD 2160p59.94! You get 16 next generation ATEM Advanced Chroma Keyers with 4 per M/E, perfect for advanced work and virtual sets. As the most advanced ATEM switcher, this model also includes the latest technology and features such as 2 Ultra HD multi viewers, full 2D DVE, built in SuperSource compositing engine with 4 picture in picture DVE's, full re-synchronization on each 12G-SDI input and much more! The multi rate 12G-SDI connections automatically switch between all HD and Ultra HD formats up to 2160p59.94 with a single BNC cable! Even if you're not working in Ultra HD now, the ATEM 4 M/E Broadcast Studio 4K has all the power and features for the highest end live production work, while being Ultra HD ready the instant you need it!

General Information
Manufacturer
Blackmagic Design Pty. Ltd
Manufacturer Part Number
SWATEMRRW4ME4K
Manufacturer Website Address
http://www.blackmagic-design.com
Brand Name
Blackmagic Design
Product Line
ATEM
Product Name
ATEM 4 M/E Broadcast Studio 4K
Product Type
Video Mixer
Physical Characteristics
Form Factor
Rack-mountable
Height
3.5"
Width
19"
Depth
9.3"
Weight (Approximate)
10.58 lb
Miscellaneous
Package Contents
  • ATEM 4 M/E Broadcast Studio 4K
  • SD card with software
  • Manual
Additional Information
  • Total Video Inputs: 20
  • Total Video Outputs: 13
  • Total Aux Outputs: 6
  • SDI Rates: 1.5G, 3G, 6G, 12G
  • Total Audio Inputs: 2 x XLR. 2 x RCA
  • Total Audio Outputs: 2 x XLR Program 2 x XLR Monitor
  • Timecode Connections: 1 x XLR Timecode in and 1 x XLR Timecode out
  • Reference Input: Tri-Sync or Black Burst
  • Video Input Re-sync: On all 20 inputs
  • SDI Video Inputs: 20 x 10-bit HD/Ultra HD 4K switchable. 2 channel embedded audio
  • Extra Audio Outputs: 1 x XLR Timecode and 1 x XLR Talkback
  • SDI Audio Outputs: 2 Ch embedded into SDI output on all outputs
  • Extra Audio Inputs: 1 x XLR Timecode and 1 x XLR Talkback
  • SDI Program Outputs: 3 x 10-bit HD/Ultra HD 4K switchable
  • Down Converted SDI Program Output: 1 x 10-bit (From Ultra HD 4K to HD)
  • SDI Preview Outputs: 1 x 10-bit HD/Ultra HD 4K switchable
  • Total Multi Views: 2
  • SDI Multi View Outputs: 2
  • Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network
  • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
  • Computer Interface: 1 x USB 2.0 port
  • HD Video Standards: 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94
  • SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 2082
  • Video Sampling: 4:2:2
  • Color Precision: 10-bit
  • Color Space: REC 601, REC 709, REC 2020
  • Upstream Keyers: 16 with Chroma/Linear/Luma key
  • Downstream Keyers: 2
  • Chroma Keyers: 16
  • Talkback Support: None
  • Mix Minus Support: None
  • Linear/Luma Keyers: 19
  • Transition Keyer (Stinger/DVE): 1 Stinger, 1DVE
  • Total Number of Layers: 26
  • Pattern Generators: 19
  • Color Generators: 2
  • DVE with 3D Borders & Drop Shadow: 1
  • Control Panel: Software or optional hardware panel
  • Routable Windows: 16
  • Tally: Red for program and green for preview indication
  • Windows Source Labels: Yes
Warranty
Limited Warranty
12 Month
