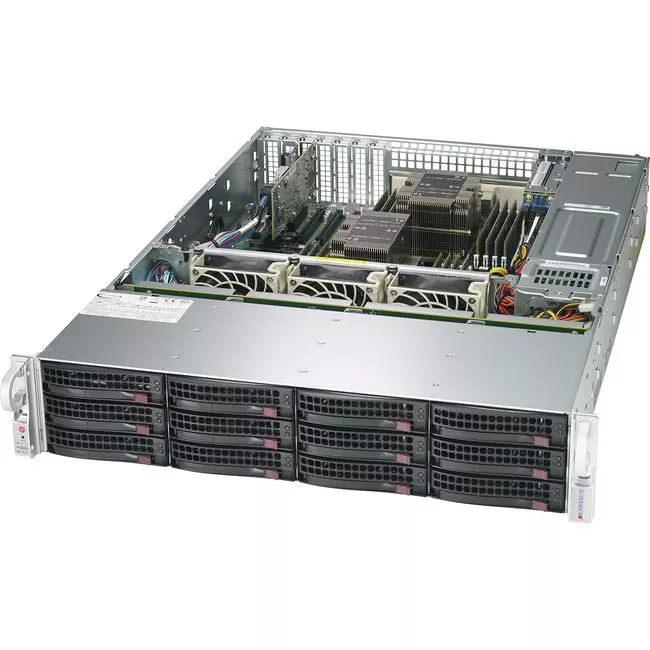

Supermicro SSG-2029P-E1CR24H 2U Storage Server

MPN # SSG-2029P-E1CR24H
Condition: New
Product highlights:
  • Processor: 2x Intel Xeon Scalable family
  • Drive Bays: 24x 2.5" Hot-swap Drives
  • Broadcom 3108 SAS3 Controller
  • Rack Height: 2U
Contact sales for pricing

Need Help?

let's talk about it.

The Supermicro SSG-2029P-E1CR24H is based on the Intel Xeon Scalable family processor. It features twenty-four 2.5" rear and two 2.5" front hot-swap drives, a Broadcom 3108 SAS3 controllers with JBOD expansion port, and two 10GBASE-T LAN ports.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
  • Xeon
Processor Supported
  • Bronze 31XX
  • Silver 41XX
  • Gold 51XX
  • Gold 61XX
  • Platinum 81XX
  • Bronze 32XX
  • Silver 42XX
  • Gold 52XX
  • Gold 62XX
  • Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory
4 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
Controller Type
  • SATA3 (via Intel C622 Chipset)
  • SAS3 (via Broadcom 3108 Add-On Card)
RAID Supported
Yes
RAID Levels
  • 0, 1, 5, 10 (SATA3)
  • 0, 1, 5, 6, 10, 50, 60 (SAS3)
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ45) Ports
2
I/O Expansions
PCI Express
  • 3x PCI-E 3.0 x16 slots (Low-Profile)
  • 4x PCI-E 3.0 x8 slots (Low-Profile)
  • Stol 2 & 3 occupied by controller and JBOD Expansion Port
  • 2x PCI-E 3.0 x4 M.2 Slots (2242/2260/2280/22110)
Drive Bays
Hot-Swap
  • 24x 2.5" Front Hot-Swap Drive Bays
  • 2x 2.5" Rear Hot-Swap Drive Bays
Interfaces/Ports
Total Number of USB 3.0 Ports
5 (4x rear, 1x Type A)
Number of SATA Interfaces
10
Number of SAS Interfaces
8
Number of M.2 Interfaces
2
LAN
  • 2x 10GBASE-T RJ45 Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
  • 1x VGA
Serial Port / Header
1 (header)
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Depth
24.8"
