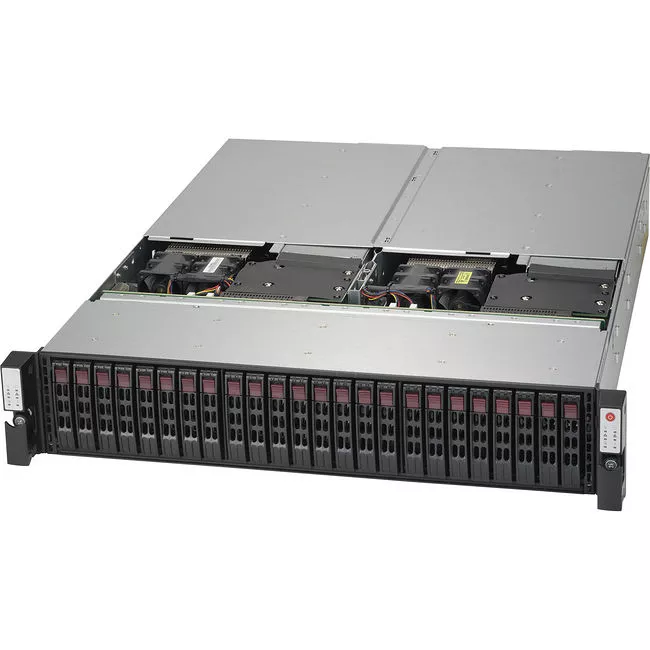

Supermicro SSG-2028R-DE2CR24L 2U Storage Server
MPN # SSG-2028R-DE2CR24L
Condition: New
Product highlights:
- Number of nodes: 2
- Processor Supported (Per Node): 2x Intel E5-2600 v3/v4
- Drive Bays: 24x 2.5" Hot-Swap
- Rack Height: 2U
Need Help? let's talk about it.
The Supermicro SSG-2028R-DE2CR24L is based on the Intel Xeon E5-2600 v3/v4 families. It features two nodes, each with twenty-four hot-swappable 2.5" drive bays and eight memory slots with support for NVDIMM modules.
Processor & Chipset
Number of Processors Supported
2 (per node)
Processor Socket
LGA 2011-3
Processor Type
Xeon
Processor Supported
- E5-2600 v3
- E5-2600 v3/v4
Thermal Design Power (TDP)
Up to 145W
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
512 GB (per node)
Memory Technology
DDR4 SDRAM (supports NVDIMM modules)
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
8 (per node)
Controllers
SATA3
- Via C612 chipset
- RAID 0, 1, 5, 10
SAS3
- Via LSI 3008
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2 (per node)
I/O Expansions
PCI Express
- 3x PCI-E 3.0 x8 slots (per node)
Drive Bays
Hot-swap
24x shared 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
3 (per node)
Number of USB 3.0 Ports
3 (per node, 2x rear, 1x Type A)
Number of SAS Interfaces
- 2x JBOD expansion ports (per node, mini-SAS HD)
- 1x SAS expander port (per node)
Number of SATA Interfaces
- 2x SATA3 Ports (per node)
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 IPMI LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.50"
Width
17.20"
Depth
25.25"
