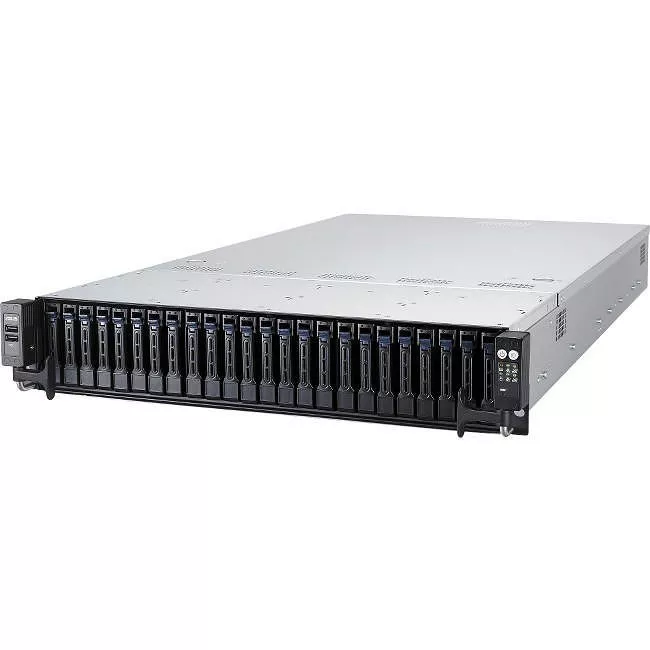

ASUS RS720A-E9-RS24-E AMD EPYC 7000 SERIES 32 DIMM
- Maximum Memory: 4 TB
- Memory Standard: DDR4-2666/PC4-21300
- Rack Height: 2U
- Number of Total Expansion Bays: 24
Brand new AMD EPYC™ platform design
ASUS RS720A-E9-RS24-E is built on the brand-new AMD EPYC™ platform to deliver incredible server performance. With up to 32 cores per CPU and up to 128 threads in a single 2U server, RS720A-E9-RS24-E packs incredible power in minimal space. 32 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.
8 + 1 expansion slots
ASUS RS720A-E9-RS24-E features seven full-height PCIe 3.0 x16 slots (x8 mode). Six of these slots can be paired together to enable three PCIe 3.0 x16 mode configurations. RS720A-E9-RS24-E also comes with one low-profile PCIe 3.0 x16 slot (x16 mode) and one OCP Mezzanine 2.0 slot (x16 mode) for OCP LAN cards. With its flexible expandability, RS720A-E9-RS24-E fits a wide range of storage and networking applications, and provides high scalability in a 2U server.
User-friendly and energy-efficient design
RS720A-E9-RS24-E features numerous user-friendly design features that simplify server maintenance. Two M.2 slots that accommodate 22110-size SSDs for additional storage options. The server's Q-code is visible from the outside of the case to make diagnosing issues easier and more convenient. A tool-less rack rail kit is included for easy server installation and removal, and a tool-less, hot-swappable fan makes for faster and simpler maintenance. RS720A-E9-RS24-E also features an energy-efficient design that eliminates the power-sharing board for reduced power consumption and operation costs.
Complete remote server management
With an onboard ASMB9-iKVM, ASUS RS720A-E9-RS24-E enables remote out-of-band management via IPMI (Intelligent Platform Management Interface). Additionally, the all-new ASUS Control Center software provides a centralized server management solution with comprehensive control over IT environments and reduced IT operation costs.
