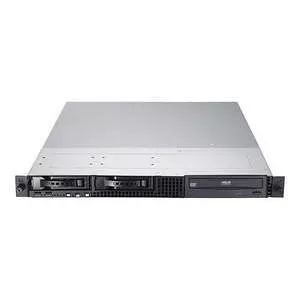

ASUS RS300-E6/PS2 1U Rackmount Barebone - Intel 3420 Chipset - Socket H LGA-1156 - 1 x CPU Support

MPN # RS300-E6/PS2 UPC # 610839059782
Condition: New
Product highlights:
  • Number of Processors Supported: 1
  • Processor Socket: Socket H LGA-1156
  • Maximum Memory: 32 GB
  • Memory Standard: DDR3-1333/PC3-10600
Contact sales for pricing

Need Help?

let's talk about it.

RS300-E6/PS2 Barebone System is a single-socket rack-mount server based on Dual-Core/Quad-Core Intel processors and Intel 3420MCH chipset, which provides immediate performance scale up and high expandability and upgradability in the 1U server.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
RS300-E6/PS2
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
RS300-E6/PS2
Product Name
RS300-E6/PS2 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket H LGA-1156
Processor Supported
  • Xeon
  • Core i5
  • Core i7
  • Chipset Manufacturer
    Intel
    Chipset Model
    3420
    Memory
    Maximum Memory
    32 GB
    Memory Technology
    DDR3 SDRAM
    Memory Standard
    DDR3-1333/PC3-10600
    Controllers
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
    0, 1
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2050
    Graphics Memory Capacity
    8 MB
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    3
    Number of External 5.25" Bays
    1
    Number of 3.5" Bays
    2
    Number of Total Expansion Slots
    2
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Network (RJ-45)
    Yes
    Software
    Operating System Supported
  • Red Hat Enterprise Linux AS 5
  • Red Hat Enterprise Linux AS 5 x64
  • SuSE Linux Enterprise Server 10 x64
  • SuSE Linux Enterprise Server 10
  • Windows Server 2008 Enterprise x64 Edition
  • Windows Server 2008 Enterprise Edition
  • Windows Server 2003 R2 Enterprise
  • Windows Server 2003 R2 Enterprise x64
  • Software Included

    ASWM2.0 Software

    Power Description
    Number of Power Supplies Installed
    1
    Maximum Power Supply Wattage
    350 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    24.2"
    Width
    17.5"
    Depth
    1.7"
    Miscellaneous
    Package Contents
    • RS300-E6/PS2 Barebone System
    • 1 x Support CD
    • 1 x User's Guide
    • 1 x Bag of Screws
    • 1 x ASUS ASWM2.0 User's Guide
    Additional Information

    Memory Detail:

    • Supports up to 6 Registered DIMMs or 4 Unbuffered DIMMs

    Expansion Slot Detail:

    • PCI Express x16 slot has the bus speed of PCI Express x8
    Environmentally Friendly
    Yes
    Environmental Certification
    80 Plus
    Warranty
    Limited Warranty
    3 Year
