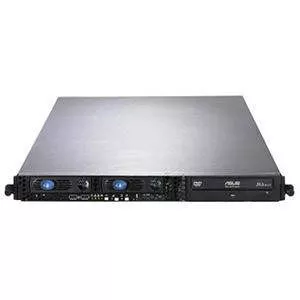

ASUS RS120-E5/PA2 1U Barebone System

MPN # RS120-E5/PA2 UPC # 610839652433
Condition: New
Product highlights:
  • Number of Processors Supported: 1
  • Processor Socket: Socket T LGA-775
  • Maximum Memory: 8 GB
  • Memory Standard: DDR2-800/PC2-6400
Contact sales for pricing

Need Help?

let's talk about it.

RS120-E5/PA2 Barebone System is a single-socket 1U server platform based on Intel 3200 chipset and ready to support next generation 45nm Intel Xeon processor. With the optimized placement and thermal technology, it is able to provide the high performance computing power with great reliability.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
RS120-E5/PA2
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
RS120-E5/PA2
Product Name
RS120-E5/PA2 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket T LGA-775
Processor Supported
  • Core 2 Duo
  • Xeon
  • Core 2 Extreme
  • Core 2 Quad
  • Pentium Dual-core
  • Front Side Bus
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
  • Chipset Manufacturer
    Intel
    Chipset Model
    3200
    Memory
    Maximum Memory
    8 GB
    Memory Technology
    DDR2 SDRAM
    Memory Standard
    DDR2-800/PC2-6400
    Number of Total Memory Slots
    4
    Controllers
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
    0, 1
    Display & Graphics
    Graphics Controller Manufacturer
    XGI
    Graphics Controller Model
    Z9s
    Graphics Memory Capacity
    32 MB
    Graphics Memory Technology
    DDR2 SDRAM
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    3
    Number of External 5.25" Bays
    1
    Number of Total Expansion Slots
    4
    Number of PCI-X Slots
    1
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Network (RJ-45)
    Yes
    VGA
    Yes
    Software
    Operating System Supported
  • Windows Server 2003 R2 Enterprise
  • Red Hat Enterprise Linux AS 4 Update 3
  • SuSE Linux Enterprise Server 10 x64
  • Windows Server 2003 R2 Enterprise x64
  • SuSE Linux Enterprise Server 10
  • Power Description
    Number of Power Supplies Installed
    1
    Maximum Power Supply Wattage
    315 W
    Physical Characteristics
    Rack Height
    1U
    Weight (Approximate)
    26.46 lb
    Miscellaneous
    Additional Information

    ASUS Features:

    • Smart Fan III
    • ASWM2.0
    Warranty
    Limited Warranty
    3 Year
