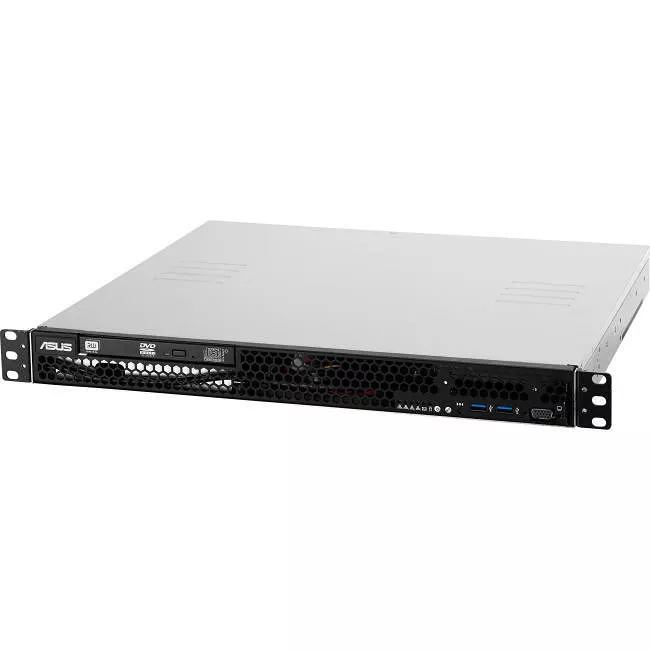

ASUS RS100-E8-PI2 1U Rackmount Barebone - Intel C224 Chipset - Socket H3 LGA-1150 - 1 x CPU Support

MPN # RS100-E8-PI2
Condition: New
Product highlights:
  • Number of Processors Supported: 1
  • Processor Socket: Socket H3 LGA-1150
  • Maximum Memory: 32 GB
  • Memory Standard: DDR3-1600/PC3-12800
Contact sales for pricing

Need Help?

let's talk about it.
Smart compact 1U server

As always, ASUS works hard to deliver servers that offer optimal performance. In this generation, the ASUS RS100-E8-PI2 supports the new Intel® Xeon® E3-1200 v3 processor family, and can operate with great stability at up to 40-degree centigrade sustained ambient temperatures. It is also features an 80 PLUS Bronze power supply for enhanced energy savings and lower power bills. In addition, it offers advanced I/O options, a user-friendly design, and complete remote server management through ASWM Enterprise and ASMB7-iKVM. All of those features make the RS100-E8-PI2 the best server for SMBs.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
RS100-E8-PI2
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
RS100-E8-PI2
Product Name
RS100-E8-PI2 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
Xeon
Chipset Manufacturer
Intel
Chipset Model
C224
Memory
Maximum Memory
32 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
4
Storage
Optical Drive Type
DVD-Writer
Controllers
Controller Type
  • Serial ATA/600
  • Serial ATA/300
  • RAID Supported
    Yes
    RAID Levels
    0, 1
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2300
    Graphics Memory Capacity
    32 MB
    Graphics Memory Technology
    VRAM
    Network & Communication
    Ethernet Technology
    Ethernet
    I/O Expansions
    Number of External 5.25" Bays
    1
    Number of Total Expansion Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    4
    Network (RJ-45)
    Yes
    VGA
    Yes
    Number of SATA Interfaces
    6
    Software
    Operating System Supported
  • CentOS 5.8
  • CentOS 5.8 x64
  • Windows Server 2008 R2 Enterprise
  • Windows Server 2008 Enterprise x64 Edition
  • Windows Server 2012
  • Windows 8
  • Windows 8 x64
  • Red Hat Enterprise Linux AS 5.8
  • Red Hat Enterprise Linux AS 5.8 x64
  • Red Hat Enterprise Linux AS 6.3
  • Red Hat Enterprise Linux AS 6.3 x64
  • CentOS 6.2
  • CentOS 6.2 x64
  • Red Hat Enterprise Linux AS6.2
  • Red Hat Enterprise Linux AS6.2 x64
  • Ubuntu Desktop 12.04
  • CentOS 6.3 x64
  • CentOS 6.3
  • Software Included
    ASWM Enterprise
    Power Description
    Input Voltage
  • 110 V AC
  • 220 V AC
  • Number of Power Supplies Installed
    1
    Maximum Power Supply Wattage
    250 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Weight (Approximate)
    14.33 lb
    Miscellaneous
    Package Contents
    • RS100-E8-PI2 Barebone System
    • 1 x RS100-E8 User's Guide
    • 1 x Bag of Screws
    • 1 x AC Power Cable
    • 1 x RS100-E8 Support DVD
    • 1 x ASWM ENTERPRISE DVD
    Certifications & Standards
    Safety
    • Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
    EMI
    • US (FCC, CFR47 Part 15, Class B)
    • Europe (CE, EN55022 & EN55024)
    • Australia (C-TICK)
    • Taiwan (BSMI)
    • China (CCC)
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Warranty
    Limited Warranty
    3 Year
