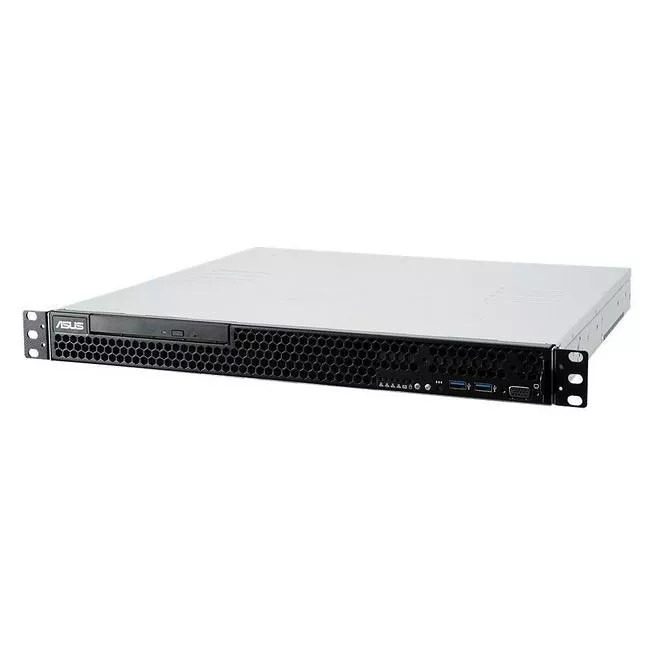

ASUS RS100-E10-PI2 1U Rack Barebone System - Intel C242 Chipset - 1X Socket H4 LGA-1151

MPN # RS100-E10-PI2
Condition: New
Product highlights:
  • Number of Processors Supported: 1
  • Processor Socket: Socket H4 LGA-1151
  • Maximum Memory: 64 GB
  • Memory Standard: DDR4-2666/PC4-21300
$1,199.00

Need Help?

let's talk about it.

Delivers a workload optimized solution

RS100-E10-PI2 supports the latest Intel® Xeon® E processors, which are 1.36x faster than the previous generation and operate at a maximum of 95W for leading performance. It supports four memory slots that fit up to 64GB of DDR4 2666 for memory-intensive computing.

Flexible expansion for better storage

RS100-E10-PI2 offers the performance required by demanding visual computing workloads with support of one NVIDIA graphics card, or you can utilize one PCIe Gen3 x16 slot to expand I/O capacity.

RS100-E10-PI2 fits two internal 3.5-inch HDDs and comes with optical disc drive, and offers different storage choice for storage support. Two M.2 slots accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 bandwidth - 5.3X faster than 6 Gb/s SATA III - for faster boot speeds.

High-speed mini-SAS HD connections

RS100-E10-PI2 comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. RS100-E10-PI2 also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of RS100-E10-PI2, making it a great upgrade option.

Quad Intel® Gigabit Ethernet

RS100-E10-PI2 features quad server-class Intel® Ethernet ports and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network. Optional ASUS PEB series Ethernet cards are available for networking upgrade.

Comprehensive IT infrastructure management

RS100-E10-PI2 features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers.

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Enhanced serviceability

With its power button located on the front I/O panel, RS100-E10-PI2 is designed to provide easier maintenance and deployment for diverse applications.

Quick initialization guidance

RS100-E10-PI2 provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.

General Information
Manufacturer
ASUS Computer International
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Series
RS100-E10-PI2
Product Name
RS100-E10-PI2 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C242
Memory
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
4
Controllers
Controller Type
Serial ATA
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
3
Number of External 5.25" Bays
1
Number of 3.5" Bays
2
Number of Total Expansion Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 3.0 Ports
4
Number of SATA Interfaces
2
Software
Operating System Supported
  • Windows Server 2016
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • CentOS
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    1
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    15"
    Depth
    16.9"
    Weight (Approximate)
    16.53 lb
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
