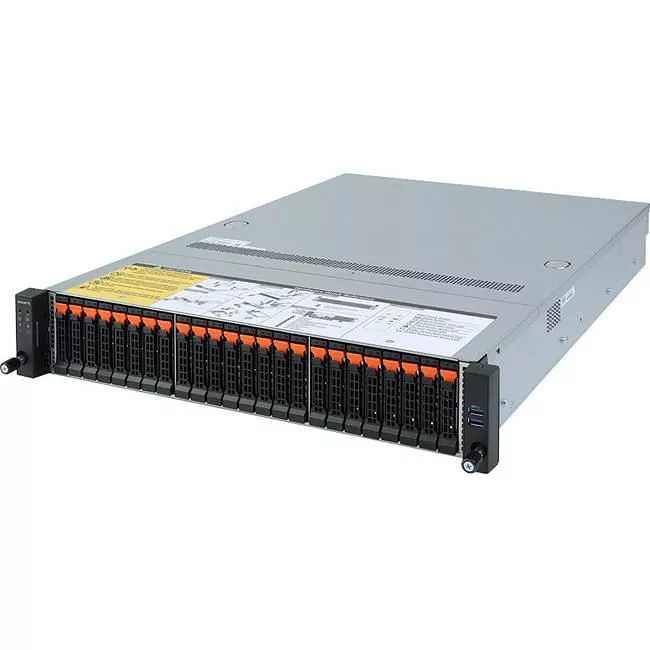

GIGABYTE R282-Z92 2U Rack-mountable Barebone - SoC - Dual Socket SP3
- Number of Processors Supported: 2
- Processor Socket: Socket SP3
- Maximum Memory: 128 GB
- Memory Standard: DDR4-3200/PC4-25600
- Dual AMD EPYC™ 7002 series processor family
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 24 x 2.5 NVMe hot-swappable SSD bays in front side
- 2 x 2.5 SATA/SAS hot-swappable HDD/SSD bays in rear side
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 2 x PCIe Gen4 expansion slots
- Aspeed® AST2500 remote management controller
- 1600W 80 PLUS Platinum redundant power supply
AMD EPYC™ 7002 Series Processor (Rome)
The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.
- Built on 7nm advanced process technology - the best the industry has to offer, allowing for denser compute capabilities with lower power consumption
- The world's first 64 core data center CPU, built using Zen 2 high performance cores and AMD's innovative chiplet architecture
- The world's first mainstream PCIe Gen 4.0 data center CPU with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
- Embedded security protection to help defend your CPU, applications, and data
PCIe Gen 4.0 Ready
AMD EPYC Rome is the world's first mainstream data center CPU to support PCIe Gen 4.0, with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE's AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD's Radeon MI50 GPGPU.
Higher Memory Speed
AMD EPYC's Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)
More M.2 Storage
GIGABYTE's AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage - both onboard M.2 slots and extra capacity via optional riser cards.
OCP 3.0 Add-On Card Ready
GIGABYTE's AMD EPYC Rome Server Platforms feature an onboard OCP 3.0 mezzanine slot for the next generation of PCI Gen 4.0 add on cards.
Compared to previous OCP 2.0 type cards, advantages of this new type include:
- Easier Serviceability: simply slot in / pull out the card without needing to open the server chassis; tool less design
- Larger Thermal Envelope: more space for heat sink provides an increased power budget for new & emerging capabilities
Max TDP Support
GIGABYTE's AMD EPYC server platforms come ready to support the full list of AMD EPYC Rome 7002 Series processors: up to 225W (standard TDP) / 240W (cTDP)
TPM 2.0 Module
GIGABYTE's AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).
Design Features for Easy Maintenance
GIGABYTE's AMD EPYC 7002 Series server platforms contain many tool less design features for easy installation, maintenance and removal - never worry about forgetting your toolbox or losing a screw again!
Tool-less Rail Kits
Rail kits attach to the side of the server chassis via clipping mechanism.
Tool-less 2.5 & 3.5 Drive Bays
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
