Tripp Lite PDU3EVN6G60B 3-PHASE PDU MONITORED 14.5KW 200/208/240V 42 C13; 6 C19; IEC-309

MPN: PDU3EVN6G60B
Highlights
  • Product Type: PDU
  • Output Receptacles: 6 x IEC 60320 C19 | 42 x IEC 60320 C13
  • Output Voltage: 200 V AC | 208 V AC | 240 V AC
  • Rack Height: 0U
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
MPN: PDU3EVN6G60B
Contact sales for pricing

Tripp Lite PDU3EVN6G60B 3-PHASE PDU MONITORED 14.5KW 200/208/240V 42 C13; 6 C19; IEC-309

Highlights
  • Product Type: PDU
  • Output Receptacles: 6 x IEC 60320 C19 | 42 x IEC 60320 C13
  • Output Voltage: 200 V AC | 208 V AC | 240 V AC
  • Rack Height: 0U

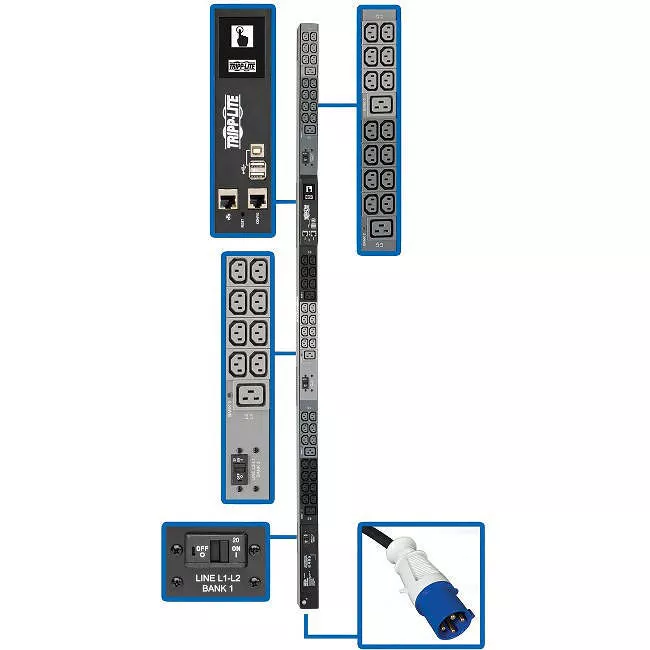

The PDU3EVN6G60B 14.5kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, it features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with IEC 309 60A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
