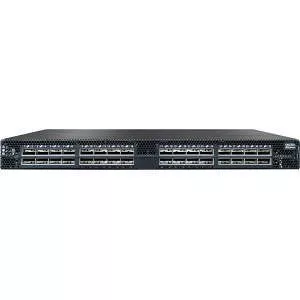

Mellanox MSN2700-CS2FC Spectrum 100 GbE 1U Open Ethernet Switch w/Cululus Linux, 32 QSFP28 Ports
MPN # MSN2700-CS2FC
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Switch Chassis
  • Ethernet Technology: 100 Gigabit Ethernet
  • Compatible Rack Unit: 1U
  • Media Type Supported: Optical Fiber
$22,948.99
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.
Mellanox SN2700 provides the most predictable, highest density 100GbE switching platform for the growing demands of today's data centers.

The SN2700 switch is an ONIE (Open Network Install Environment) based platform for allowing a multitude of operating systems to be mounted on it and utilizing the advantages of Open Networking and the capabilities of the Mellanox Spectrum™ ASIC.

The SN2700 has three modes of operation. It can be provided preinstalled with Mellanox Onyx™ (successor to MLNX-OS Ethernet), a home-grown operating system utilizing common networking user experiences and industry standard CLI. It can come preinstalled with Cumulus® Linux, a revolutionary operating system taking the Linux user experience from servers to switches and providing a rich routing functionality for large scale applications. Finally, it can be provided with a bare ONIE image ready to be installed with the aforementioned or other ONIE-based operating systems.

The SN2700 switch is an ideal spine and top-of-rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100Gb/s per port and port density that enables full rack connectivity to any server at any speed. The uplink ports allow a variety of blocking ratios that suit any application requirement.

Powered by the Spectrum ASIC and packed with 32 ports running at 100GbE, the SN2700 carries a whopping throughput of 6.4Tb/s with a landmark 9.52Bpps processing capacity in a compact 1RU form factor.

Keeping with the Mellanox tradition of setting performance record switch systems, the SN2700 introduces the world's lowest latency for a 100GbE switching and routing element, and does so while having the lowest power consumption in the market. With the SN2700, the use of 25, 40, 50 and 100GbE in large scale is enabled without changing power infrastructure facilities.

The SN2700 is part of Mellanox's complete end-to-end solution which provides 10GbE through 100GbE interconnectivity within the data center. Other devices in this solution include ConnectX®-4 based network interface cards, and LinkX™ copper or fiber cabling. This end-to-end solution is topped with Mellanox NEO™, a management application that relieves some of the major obstacles when deploying a network. NEO enables a fully certified and interoperable design, speeds up time to service and eventually speeds up RoI.

The SN2700 introduces superior hardware capabilities including dynamic flexible shared buffers and predictable wire speed performance with no packet loss for any packet size.
General Information
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MSN2700-CS2FC
Manufacturer Website Address
http://www.mellanox.com
Brand Name
Mellanox
Product Line
Spectrum
Product Model
SN2700
Product Name
SN2700 Open Ethernet Switch
Product Type
Switch Chassis
Interfaces/Ports
Uplink Port
No
Modular
Yes
Stack Port
No
Port/Expansion Slot Details
32 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
Optical Fiber
Ethernet Technology
100 Gigabit Ethernet
Network Technology
100GBase-X
I/O Expansions
Number of Total Expansion Slots
32
Expansion Slot Type
QSFP28
Shared SFP Slot
No
Network & Communication
Layer Supported
3
Management & Protocols
Manageable
Yes
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
No
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
  • Rail-mountable
  • Rack-mountable
  • Height
    1.7"
    Width
    16.8"
    Depth
    27"
    Weight (Approximate)
    24.47 lb
    Miscellaneous
    Package Contents
    • SN2700 Open Ethernet Switch
    • 2 x Power Supplies (AC)
    • Rail Kit
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
