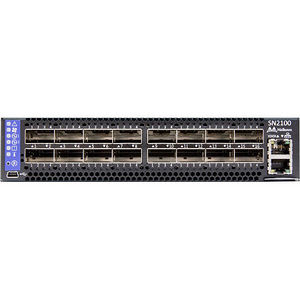

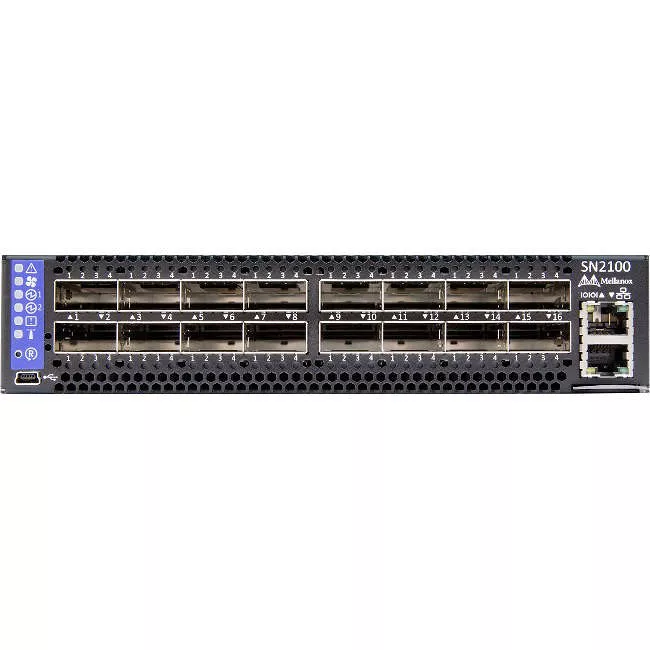

Mellanox MSN2100-CB2F SN2100 Spectrum Based 100 GBE 1U Open Ethernet Switch
MPN # MSN2100-CB2F
UPC # 098379121594
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Ethernet Switch
  • Ethernet Technology: 100 Gigabit Ethernet
  • Compatible Rack Unit: 1U
  • Media Type Supported: Optical Fiber
$10,604.63
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.
The SN2100 switch provides a high density, side-by-side 100GbE switching solution which scales up to 128 ports in 1RU for the growing demands of today's database, storage, data centers environments.

The SN2100 switch is an ideal spine and top of rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100Gb/s per port and port density that enables full rack connectivity to any server at any speed. The uplink ports allow a variety of blocking ratios that suit any application requirement.

Powered by the Mellanox Spectrum™ ASIC and packed with 16 ports running at 100GbE, the SN2100 carries a whopping throughput of 3.2Tb/s with a landmark 4.76Bpps processing capacity in a compact 1RU form factor.

Following the footsteps of the SwitchX®-2 based-systems, the SN2100 enjoys the legacy of the fieldproven MLNX-OS® operating system with a wide installed base and a robust implementation of data, control and management planes that drives the world's most powerful data centers.

Keeping with the Mellanox tradition of setting performance record switch systems, the SN2100 introduces the world's lowest latency for a 100GbE switching and routing element, and does so while having the lowest power consumption in the market. With the SN2100, the use of 25, 40, 50 and 100GbE in large scale is enabled without changing power infrastructure facilities.

The SN2100 is part of Mellanox's complete end-to-end solution which provides 10GbE through 100GbE interconnectivity within the data center. Other devices in this solution include ConnectX®-4 based network interface cards, and LinkX™ copper or fiber cabling. This end-to-end solution is topped with Mellanox NEO™, a management application that relieves some of the major obstacles when deploying a network. NEO enables a fully certified and interoperable design, speeds up time to service and eventually speeds up RoI.

The SN2100 carries a unique design to accommodate the highest rack performance. Its design allows side-by-side placement of two switches in a single, 1RU slot of a 19" rack, delivering high availability to the hosts.

Database solutions require high availability and the ability to scale out in active-active configuration. For example, DB2 pureScale or Oracle RAC require high bandwidth and low latency to the caching facility, the disk storage system, etc., with connectivity to the application servers. The SN2100 is the best fit, providing the highest network throughput, resilience and a mix of 25GbE and 100GbE ports.

The SN2100 introduces hardware capabilities for multiple tunneling protocols that enable increased reachability and scalability for today's data centers. Implementing MPLS, NVGRE and VXLAN tunneling encapsulations in the network layer of the data center allows more flexibility for terminating a tunnel by the network, in addition to termination on the server endpoint.

While Spectrum provides the thrust and acceleration that powers the SN2100, an integrated powerful x86-based processor allows this system to not only be the highest performing switch fabric element, but also gives the ability to incorporate a Linux running server into the same device. This opens up multiple application aspects of utilizing the high CPU processing power and the best switching fabric, to create a powerful machine with unique appliance capabilities that can improve numerous network implementation paradigms.
General Information
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MSN2100-CB2F
Manufacturer Website Address
http://www.mellanox.com
Brand Name
Mellanox
Product Line
Spectrum
Product Model
SN2100
Product Name
SN2100 Open Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Uplink Port
Yes
Modular
Yes
Stack Port
No
Port/Expansion Slot Details
16 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
Optical Fiber
Ethernet Technology
100 Gigabit Ethernet
Network Technology
100GBase-X
I/O Expansions
Number of Total Expansion Slots
16
Expansion Slot Type
QSFP28
Shared SFP Slot
No
Network & Communication
Layer Supported
3
Management & Protocols
Manageable
Yes
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
  • Rack-mountable
  • Rail-mountable
  • Height
    1.7"
    Width
    7.9"
    Depth
    20"
    Weight (Approximate)
    10 lb
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    1 Year
