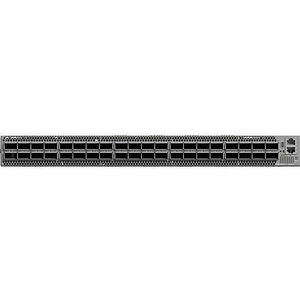

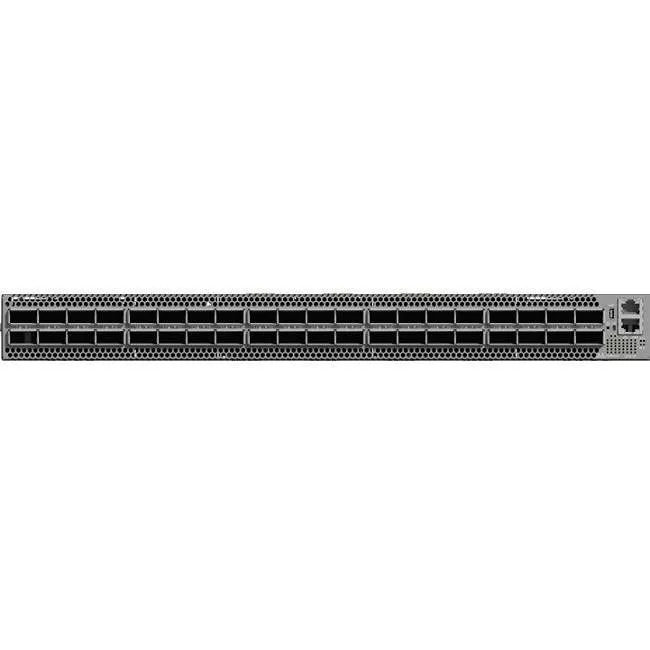

NVIDIA MQM8700-HS2F Quantum HDR InfiniBand Switch 40 QSFP56 Ports 2 Power Supplies (AC) x86 Dual Core Standard Depth P2C Airflow Rail Kit40-port Non-blocking Managed HDR 200Gb/s InfiniBand Smart Switch

Faster servers, combined with high-performance storage and applications that use increasingly complex computations are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with next generation of HDR InfiniBand, high-speed, smart switches.

Built with Quantum InfiniBand switch device, the QM8700 provides up to forty 200Gb/s ports, with full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.

QM8700 is the world's smartest network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks using embedded hardware, resulting in an order of magnitude application performance improvements.

Benefits

• Industry-leading switch platform in performance, power, and density
• Designed for energy and cost savings
• Collective communication acceleration
• Maximizes performance by removing fabric congestions
• Backward compatible to previous speeds
• Quick and easy setup and management

Key Features

• Performance
• 40 x HDR 200Gb/s ports in a 1U switch
• 80 x HDR100 100Gb/s ports (using splitter cables)
• 16Tb/s aggregate switch throughput
• Sub-130ns switch latency
• Optimized design
• 1+1 redundant & hot-swappable power
• N+1 redundant & hot-swappable fans
• 80 gold+ and energy star certified power supplies
• x86 ComEx Broadwell CPU
• Advanced design
  • Adaptive routing
  • Congestion control
  • Collective offloads (SHARP technology)
  • VL mapping (VL2VL)
