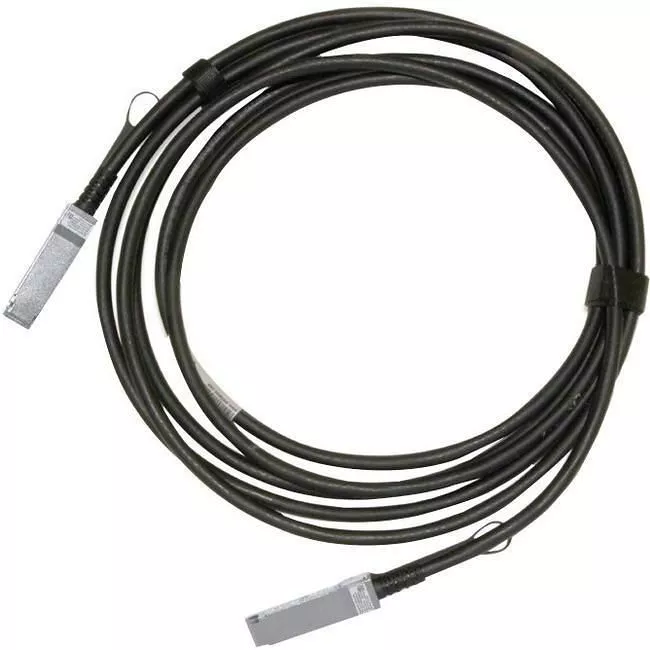

Mellanox MCP1600-E004E26 Passive Copper Cable, IB EDR, up to 100Gb/s, QSFP28, 4m
MPN # MCP1600-E004E26
UPC # 7290108486216
Availability: In Stock
Condition: New
Product highlights:
  • Product Type: Network Cable
  • Cable Type: QSFP28
  • Cable Length: 13.12 ft
  • Data Transfer Rate: 12.50 GB/s
$260.99
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.
Mellanox® MCP1600-E0xxxxx DAC cables are high speed, cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications
Mellanox QSFP28 passive copper cables contain four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability
General Information
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MCP1600-E004E26
Manufacturer Website Address
http://www.mellanox.com
Brand Name
Mellanox
Product Line
LinkX
Product Name
Passive Copper Cable, IB EDR, up to 100Gb/s, QSFP28, 4m, Black, 26AWG
Product Type
Network Cable
Technical Information
Cable Type
QSFP28
Cable Length
13.12 ft
Connector on First End
1 x QSFP28 Network
Connector on Second End
1 x QSFP28 Network
Features
  • Passive
  • Lead-free
  • Halogen Free
  • Device Supported
    Network Device
    American Wire Gauge
    26 AWG
    Data Transfer Rate
    12.50 GB/s
    Physical Characteristics
    Color
    Black
    Material
  • Low Smoke Zero Halogen - Jacket
  • Copper
  • Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Warranty
    Limited Warranty
    1 Year
