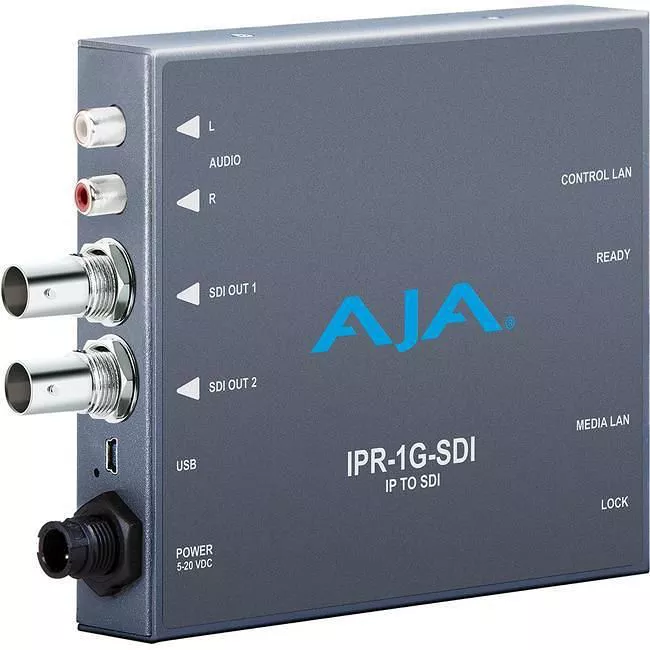

The IPR-1G-SDI is a bridge from IP to SDI with VSF TR-01 (and other JPEG 2000 formats) to 3G-SDI support, suited for point of use applications including source monitoring, transfer to VTRs and switchers, digital signage, video walls and more. The IPR-1G-SDI decodes VSF TR-01 streams then formats the data for 3G-SDI output. The audio associated with the video stream is extracted, synchronized, and then embedded into the SDI stream as well as output on an analog RCA stereo interface.

Features

IPR-1G-SDI extracts a JPEG 2000 essence from an incoming IP stream and presents it for display, routing, recording and more on SDI devices. It's rugged, fanless, Mini-Converter design is ideal for placement in a wide range of display scenarios, from studios to field.

Key features:

• 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet media input
• Essence support: VSF TR-01 and other JPEG 2000 MPEG-2 workflows
• Rugged, fanless design
• 2x 3G-SDI BNC output with 4:2:2 10-bits/pixel
• Embedded and analog audio outputs
• Full 10-bit pixel processing pipeline
• Network (LAN) control and status
• Quick network setup with AJA eMini-Setup software

User Control

IPR-1G-SDI provides two key ports for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The USB 2.0 mini connector facilitates quick and simple firmware updates.

• 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet control input
• HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• Web and REST clients supported
• 1x USB 2.0 Mini-B connector
• AJA eMini-Setup software setup of network parameters
