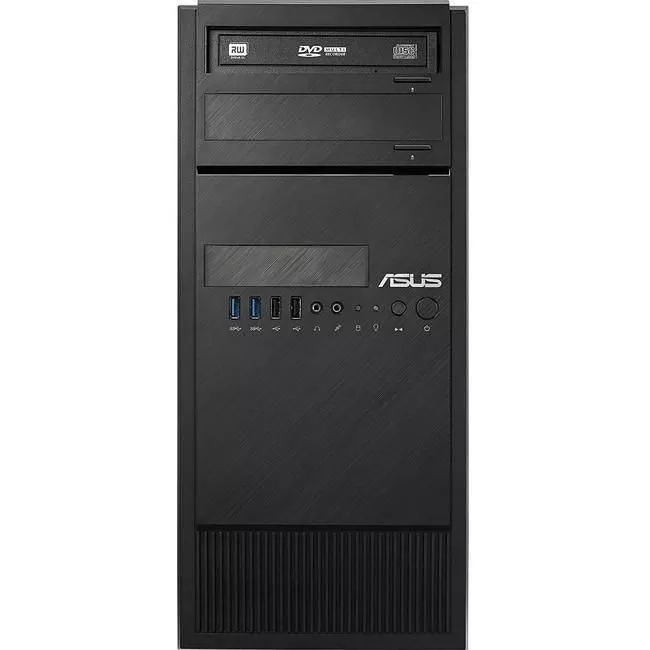

ASUS ESC700 G4 Barebone - Intel C422 Chipset - 1X Socket LGA2066

MPN # ESC700 G4
Condition: New
Product highlights:
  • Number of Processors Supported: 1
  • Processor Socket: Socket R4 LGA-2066
  • Maximum Memory: 512 GB
  • Memory Standard: DDR4-2666/PC4-21300
$801.42

Need Help?

let's talk about it.

Intel® Xeon® W Workstation with ECC support.

  • Powerful performance with Intel® Xeon® W processor and ECC memory
  • Comprehensive IT infrastructure management software
  • Multiple graphics card support
  • Ultrafast storage and I/O options
  • Outstanding audio for content creators
  • Dual Intel server-class Gigabit LAN
  • Independent software vendor (ISV) certification
  • User friendly, tool-less case design for hassle-free maintenance

Powerful performance with Intel® Xeon® W processor and ECC memory

ESC700 G4 supports Intel® Xeon® W series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.

Comprehensive IT infrastructure management software

An embedded ASMB9-iKVM module and bundled ASUS Control Center software provide comprehensive in-band and out-of-band management features for small and mid-size businesses. The embedded module supports remote BIOS updates, fan control, standalone KVM, video recording and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline. A user-friendly, web-based graphical interface works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage.

Multiple graphics card support

ESC700 G4 supports an NVIDIA® Quadro® or AMD® Radeon™ Pro graphics card, making it the perfect workstation for content creators, media streamers and professional designers.

Ultrafast storage and I/O options

Dual onboard M.2 slots and M.2 heatsink

Dual onboard M.2 slots support up to 22110-length SSDs and operate at PCIe Gen 3 x4 link speeds to provide an abundant 32Gbps of bandwidth for up to 5.3X faster performance than traditional SSDs. Both slots sit below the C422 chipset and are covered by a heatsink that reduces drive temperatures by as much as 20°C, ensuring peak performance under all scenarios.

10Gbps USB 3.1

With backward-compatible USB 3.1 Type-A and reversible USB 3.1 Type-C ports, ESC700 G4 provides ultimate connection flexibility and data-transfer speeds of up to 10Gbps - twice as fast as USB 3.0.

Outstanding audio for content creators

ESC700 G4 features the Realtek® S1220A audio codec, delivering pristine audio quality with an unprecedented 120dB signal-to-noise ratio for stereo line-out and an 113dB SNR for line-in.

Dual Intel® server-class Gigabit LAN

For more reliable networking, ESC700 G4 features the latest server-class dual Intel® Gigabit LAN, ensuring lower CPU utilization and temperatures, outstanding performance and better support for diverse operating systems. The dual Ethernet ports also support teaming, which combines the network links to provide higher throughput or redundancy in case of port failure.

Independent software vendor (ISV) certification

Independent software vendor (ISV) software is becoming an important factor to users in variety of industries. ASUS works in close partnership with ISV vendors, such as Adobe and Autodesk, to test and verify compatibility. This ensures ASUS workstations are reliable and highly effective for users in different fields.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
ESC700 G4
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Series
ESC700 G4
Product Name
ESC700 G4 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket R4 LGA-2066
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C422
Memory
Maximum Memory
512 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
8
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
6
Number of External 5.25" Bays
2
Number of 3.5" Bays
3
Number of Internal 2.5" Bays
1
Number of Total Expansion Slots
5
Number of PCI Express x4 Slots
1
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
15
Number of USB 3.0 Ports
2
Number of SATA Interfaces
6
Software
Operating System Supported
Windows 10
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    1
    Physical Characteristics
    Weight (Approximate)
    30.86 lb
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
