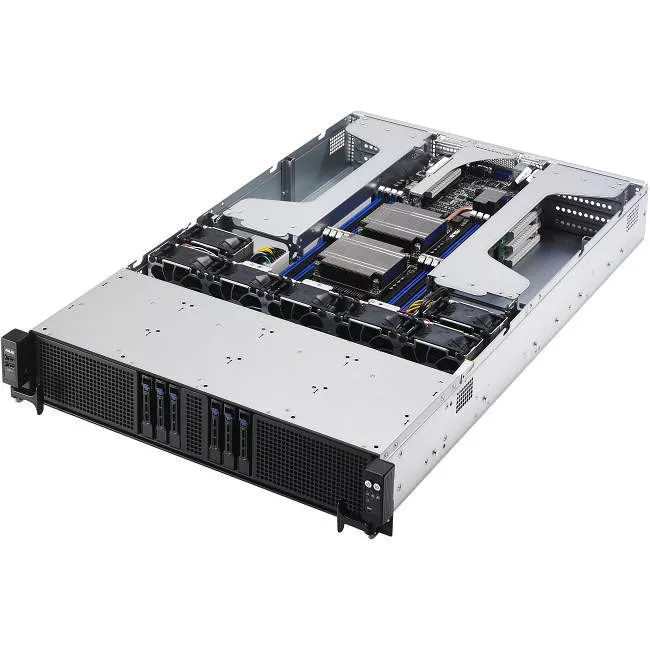

ASUS ESC4000 G3S Barebone System - 2U - 4x GPU - Intel C612 Chipset - Socket LGA 2011-v3 - 2x CPU

MPN # ESC4000 G3S UPC # 886227929191
Availability: In Stock
Condition: New
Product highlights:
  • Number of GPUs Supported: 4
  • Processor Socket: Socket LGA 2011-v3
  • Maximum Memory: 1 TB
  • Memory Standard: DDR4-2133/PC4-17000
$1,708.07

Need Help?

let's talk about it.
Design for the user

ESC4000 G3S has a visible Q-Code/port 80 LED display LED for simple monitoring of the entire boot process, from the early hardware-awakening stages to the launch of the operating system and beyond. With the features of quick initialization guidance of BIOS, users can realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. The rear power, button, location/HDD Active LED let the users check the server's status easily which saves time and effort. Also, the exclusive tool-less rail kit design helps the user to deploy the servers in an easy and simple way.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
ESC4000 G3S
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Series
ESC4000 G3S
Product Name
ESC4000 G3S Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
Ethernet
I/O Expansions
Number of Total Expansion Bays
6
Number of Internal 2.5" Bays
6
Number of Total Expansion Slots
10
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
9
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
2
Number of SATA Interfaces
6
Software
Operating System Supported
  • Windows Server 2012 R2
  • Windows Server 2012
  • Windows Server 2008 R2 Enterprise
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • CentOS
  • Ubuntu Server
  • Power Description
    Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    2000 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.4"
    Width
    17.5"
    Depth
    29.5"
    Miscellaneous
    Package Contents
    • ESC4000 G3S Barebone System
    • 1 x MB Support DVD
    • 1 X ASWM Enterprise DVD
    • 1 x ASMB8 SDVD
    • 1 x Bag of Screws
    • 1 x AC Power Cable
    • 8 x GPU Air Ducts
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
