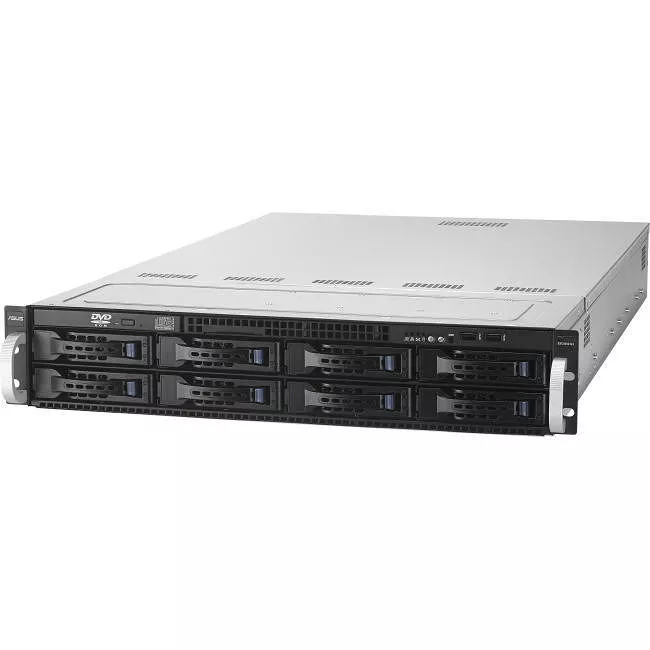

ASUS ESC4000 G3 Barebone System - 2U - 4x GPU - Intel C612 Chipset - Socket LGA 2011-v3 - 2x CPU

MPN # ESC4000 G3 UPC # 889349880692
Availability: In Stock
Condition: New
Product highlights:
  • Number of Processors Supported: 4
  • Processor Socket: Socket LGA 2011-v3
  • Maximum Memory: 1 TB
  • Memory Standard: DDR4-2133/PC4-17000
$1,699.22

Need Help?

let's talk about it.
ASUS has made it again in HPC field. The latest ESC4000 G3 based on Intel® Xeon® processor E5-2600 v3 product families, not only offering 4 double-deck GPU support but also featuring mass storage witheight hot-swappable 3.5” SATA HDD bays, 1+1 80 PLUS Platinum 2000W/1620W redundant power supplies and 8+2 PCI-E Gen3 x16 expansion slots. It delivers high density computing power, scalable expansion capability and high power efficiency, making it an ideal choice for the applications in the field of life and medical science, engineering science, financial modeling and virtualization.
General Information
Manufacturer
ASUS
Manufacturer Part Number
ESC4000 G3
Manufacturer Website Address
http://www.asus.com
Brand Name
ASUS
Product Model
ESC4000 G3
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Type
Xeon
Processor Supported
E5-2600 v3/v4
Thermal Design Power (TDP)
Up to 145W
Chipset Manufacturer
Intel
Chipset Model
C612 PCH
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 8x PCI-E 3.0 x16 slots (4x at x16 or 8x at x8, supports 4x double-wide cards)
Drive Bays
Hot-swap
8x 3.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
2 (rear)
Number of USB 2.0 Ports
2 (front)
Number of SATA Interfaces
8
LAN
  • 2x RJ45 Gigabit Ethernet LAN Ports
  • 1x RJ45 Management Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.4"
Width
17.5"
Depth
29.5"
