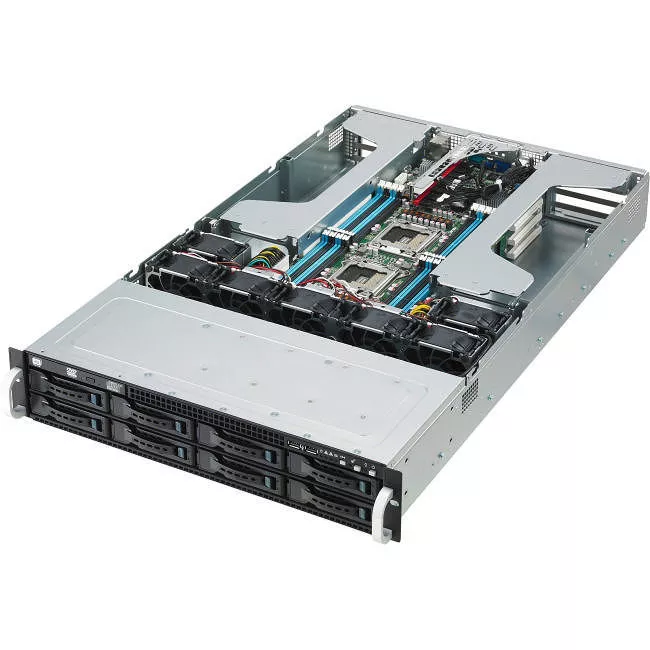

ASUS ESC4000 G2 Barebone System - 2U Rackmount- Intel C602-A PCH Chipset - 2x Socket R LGA-2011

MPN # ESC4000 G2 UPC # 886227214679
Availability: In Stock
Condition: New
Product highlights:
  • Number of Processors Supported: 2
  • Processor Socket: Socket R LGA-2011
  • Maximum Memory: 512 GB
  • Memory Standard: DDR3-1600/PC3-12800
$1,810.03

Need Help?

let's talk about it.

Hybrid Computing with scalable expansion capability

ASUS ESC4000 G2 is the latest high-density GPU server based on dual Intel Xeon E5-2600 processor platform, featuring eight hot-swap 3.5" SATA HDD cages, 1+1 80+ Platinum 1620W redundant power supply and nine PCI-E Gen3 x16 expansion slots. It delivers high density computing power, scalable expansion capability, intelligent thermal solution and green design, making it an ideal choice for applications in the HPC field of life and medical science, engineering science, financial modeling and virtualization.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
ESC4000 G2
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
ESC4000 G2
Product Name
ESC4000 G2 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
8 GT/s
Chipset Manufacturer
Intel
Chipset Model
C602-A PCH
Memory
Maximum Memory
512 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
16
Storage
Optical Drive Type
DVD-Writer
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2300
Graphics Memory Capacity
16 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
9
Number of External 5.25" Bays
1
Number of 3.5" Bays
8
Number of Total Expansion Slots
9
Number of PCI Express x16 Slots
9
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 2.0 Ports
4
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
4
Software
Operating System Supported
  • CentOS 5.7
  • CentOS 5.7 x64
  • Windows Server 2008 R2 Enterprise
  • Windows Server 2008 Enterprise Edition
  • Windows Server 2008 Enterprise x64 Edition
  • Red Hat Enterprise Linux AS5.7
  • Red Hat Enterprise Linux AS5.7 x64
  • Red Hat Enterprise Linux AS6.2
  • Red Hat Enterprise Linux AS6.2 x64
  • SuSE Linux Enterprise Server 11.2
  • SuSE Linux Enterprise Server 11.2 x64
  • CentOS 6.2
  • CentOS 6.2 x64
  • Windows Server 2008 R2
  • Software Included

    Management Solution:

    • ASWM Enterprise
    Power Description
    Input Voltage
  • 110 V AC
  • 220 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    1620 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.4"
    Width
    17.5"
    Depth
    29.5"
    Weight (Approximate)
    41.89 lb
    Miscellaneous
    Package Contents
    • ESC4000 G2 Barebone System
    • 1 x ESC4000 G2 User's Guide
    • 1 x Bag of Screws
    • 1 x AC Power Cable
    • 1 x ESC4000 G2 Support DVD
    • 1 X ASWM Enterprise DVD
    • 1 x ASMB6 Manual
    • 1 x ASMB6 DVD
    Compatibility
    • VMWare ESX4.1
    • VMWare ESXi4.1
    Certifications & Standards

    Safety:

    • Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)

    EMI:

    • US (FCC, CFR47 Part 15, Class A)
    • Europe (CE, EN55022 & EN55024)
    • Australia (C-TICK)
    • Taiwan (BSMI)
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Warranty
    Limited Warranty
    3 Year
