Rugged and powerful enough to drive even up to three 4K displays

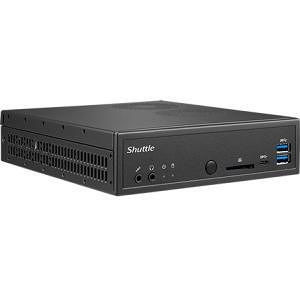

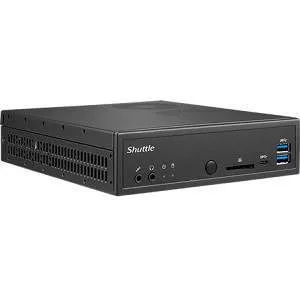

Geared towards large and high-resolution signage application, the Shuttle XPC DH270 XPC slim, is based on the Intel®H270 chipset, supports LGA 1151 Intel®6th/7th generation Core™ i 65W processors. With integrated Intel® HD graphics, the DH270 can support 4K/UHD video playback on up to three screens via three HDMI outputs. In addition it supports DDR4-2133/2400 memory, as well as Intel® Optane™ technology improve on processing and data transfer speed and agility. The DH270 provides multiple I/O and high-speed storage interfaces, including USB 2.0, USB 3.0, SATA 6Gbps, RS232/422/485, M.2 type M and A/E, and Mini PCIe. Thanks to Shuttle's exclusive heat-pipe cooling with smart fan, the DH270 is capable of long-term operation at high stability and reliability levels Its slim 43mm design and VESA support to makes it easy to integrate in diverse commercial environments.

Supports Intel® 6th /7th Generation Core™ Processor

Based on socket LGA 1151, the all-new DH270 supports both Intel® 6th/ 7th Generation (Skylake/Kaby Lake) Core™ i3/i5/i7, Pentium®, and Celeron® 65W processors. The built-in DirectX 12 compatibility with Intel® HD Graphics significantly increases CPU and GPU performance.

Intel® Optane™ Technology

With a 7th Gen Intel® Core™ processor, the DH270 supports the latest Intel® Optane™ technology which makes your overall system performance up to 28% faster.

Triple Display Support

Spread your content across three screens via HDMI outputs. You can smoothly convey dynamic high-resolution information and target promotions at your audience.

High-speed data transmission interface

The DH270 features native SATA 6Gbps, two USB 3.0 and one USB 3.0 Type-C interface. No more figuring out the right way of plugging in a USB device, USB 3.0 Type-C could be easier to use and is able to increase data transfer speed too.

Heat-pipe cooling technology

The DH270 features Shuttle's exclusive heat-pipe cooling module with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

Supports Intel® Dual Gigabit LAN

The DH270 has built-in Intel® Dual Gigabit LAN, supports Wake on LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.

24/7 Nonstop Operation

The DH270 is officially approved for 24/7 permanent operation while maintaining. Shuttle's low-power consumption design. Highly reliable and long-term operation is essential for digital signage and other vertical applications.

Operating System support-Windows 10 64bit
-Windows 7 32/64bit (Skylake only)
-Linux

Intel®H200 Series Chipset

With the integrated Intel® H270 chipset, the DH270 supports dual channel DDR4 2400 SO-DIMM memory up to 32GB (2x16GB). It also comes with Intel® Gigabit LAN, SATA 6Gbps and USB3.0 interfaces for superb data transfer speed.

Supports 4K Ultra HD

The DH270 supports playback of 4K high resolution (3840x2160) content via HDMI 2.0. At four times higher resolution as the Full HD standard, viewers will enjoy detail-rich and crystal clear images.

Supports two M.2 expansion slots

The DH270 has one built-in M.2 2280/2260/2242 Type M and one M.2 2230 Type A/E slot for an M.2 SSD and a WiFi card or other compatible devices.
