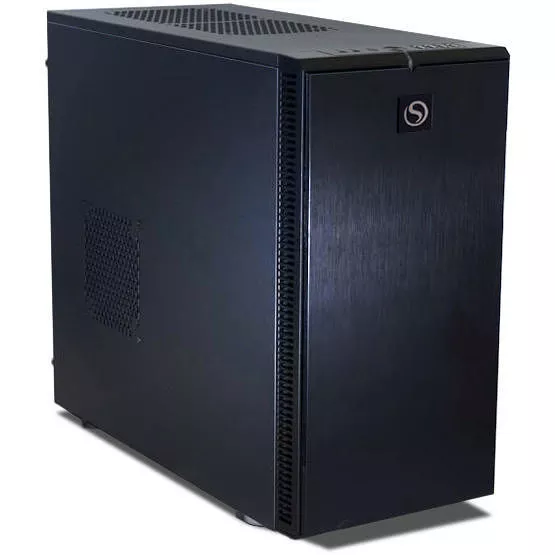

SabreCORE CWS-1719503 Mid-Tower Workstation
MPN # CWS-1719503
Condition: New
Product highlights:
  • Processor: 1x Intel Xeon E3-1200 v5/v6, Core i7/i5/i3, Celeron, Pentium
  • Drives: 2x 5.25" External, 8x 2.5"/3.5" Internal
  • Supports 1x Double-Wide card
  • Form Factor: Mid-Tower
Contact sales for pricing
Need Help?   let's talk about it.

The SabreCORE CWS-1719503 is based on the Intel Xeon E3-1200 v5/v6, Core i7/i5/i3, Celeron, or Pentium families. It offers eight 2.5"/3.5" drive bays and support for one double-wide PCI-E card.

Processor & Chipset
Number of Processors Supported
1
Processor Manufacturer
Intel
Processor Socket
LGA 1151
Processor Type
  • Xeon
  • Core
  • Celeron
  • Pentium
Processor Supported
  • E3-1200 v5
  • E3-1200 v6
  • Core i7
  • Core i5
  • Core i3
  • Celeron
  • Pentium
Chipset Manufacturer
Intel
Chipset Model
C236
Memory
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
4
Controllers
SATA3
  • Via C236 chipset
  • RAID 0, 1, 5, 10
Audio
  • ALC888S HD Audio
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI
  • 2x PCI-E 3.0 x16 slots (support 1x double wide cards, x16/NA or x8/x8)
  • 3x PCI-E 3.0 x1 (in x4 slot)
  • 1x PCI 32-bit slot
Drive Bays
Fixed
  • 8x 3.5"/2.5" combo drive bays
  • 2x 2.5" drive bays
Peripheral
  • 2x 5.25" drive bays
Interfaces/Ports
Number of USB Ports
  • 2x USB 3.1 portd (rear)
  • 6x USB 3.0 ports (2x rear, 4x header)
  • 8x USB 2.0 ports (2x rear, 6x header)
Number of SATA Interfaces
  • 6x SATA3 Ports
NVMe
  • 1x M.2 PCI-E x4 2242/2260/2280
  • No RAID support
LAN
  • 1x RJ45 1000BASE-T Ethernet LAN Ports
Graphics
  • 1x DVI-D
  • 1x DisplayPort
  • 1x HDMI
Serial Port/Header
  • 2x COM ports (headers)
Physical Characteristics
Color
Black
Form Factor
Mid-Tower
Height
18.20"
Width
9.13"
Depth
20.51"
