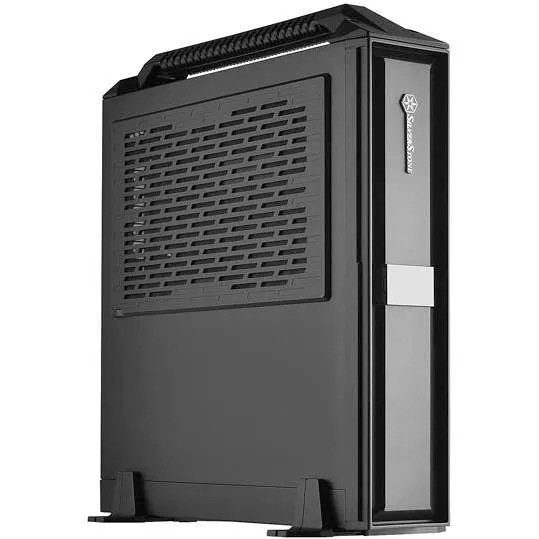

SabreCORE CWF-1723104 Small Form Factor PC
MPN # CWF-1723104
Condition: New
Product highlights:
  • Processor: 1x Intel Core i3/i5/i7, Celeron, or Pentium
  • Drive Bays: 2x 2.5" Internal
  • Supports 1x Double-Wide card
  • Form Factor: Slim
Contact sales for pricing
Need Help?   let's talk about it.
sales@sabrepc.com   |   408.914.8196

The SabreCORE CWF-1723104 is based on the Intel Core, Celeron, or Pentium families. It offers two 2.5" drive bays, and support for up one double-wide PCI-E card.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 1151
Processor Type
  • Core
  • Celeron
  • Pentium
Processor Supported
  • Core i3
  • Core i5
  • Core i7
  • Celeron
  • Pentium
Thermal Design Power (TDP)
91 W
Chipset Manufacturer
Intel
Chipset Model
Q170 Express
Memory
Maximum Memory
32 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
2
Controllers
SATA3
  • Via C620 chipset
  • RAID 0, 1, 5, 10
  • Intel Rapid Storage Technology
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
HD Graphics
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 1x PCI-E 3.0 x16 slots (Supports 1x double-wide card)
  • Mini-PCI-E with mSATA support, M.2 PCI-E 3.0 with SATA support, M Key
M.2 Form Factor
  • 2242
  • 2280
Drive Bays
External
  • 1x Slim optical drive bay (12.7mm or 9.5mm)
Internal
  • 2x 2.5" drive bays
Interfaces/Ports
Total Number of USB Ports
11
Number of USB 2.0 Ports
4 (4x header, 1x Type A)
Number of USB 3.0 Ports
4 (2x front, 4x rear)
Number of SATA Interfaces
5
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Onboard Video
  • 1x HDMI
  • 1x DisplayPort
  • 1x DVI-I
Onboard Audio
  • ALC 888S HD Audio
Serial Port/Header
  • 2x COM Ports (rear)
Physical Characteristics
Color
Black
Form Factor
Slim Form Factor
Height
3.43"
Width
14.96"
Depth
14.57"
