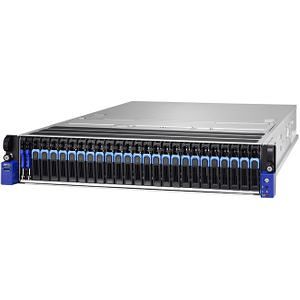

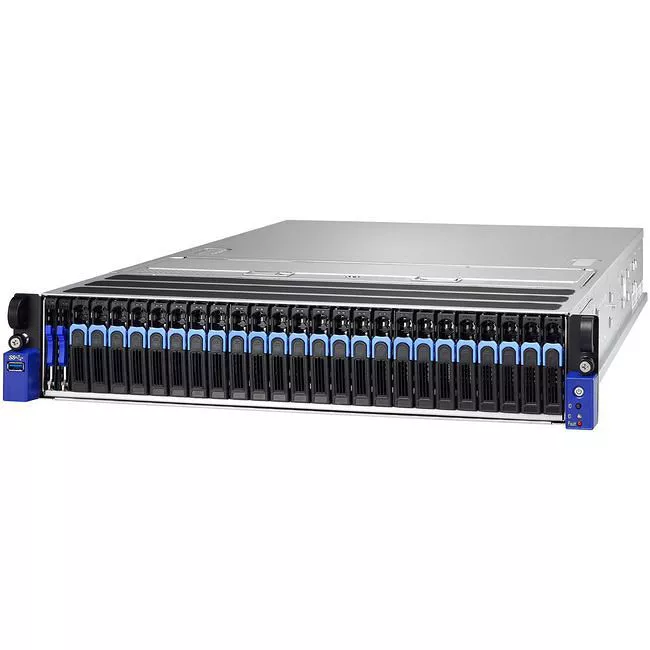

TYAN B8242T76AV2E24HR-2V TN76A-B8242 2U Rack Barebone - 2x Socket SP3 - Aspeed AST2500 Chipset

MPN: B8242T76AV2E24HR-2V

Product Highlights:

  • Number of Processors Supported: 2
  • Processor Socket: Socket SP3
  • Maximum Memory: 4 TB
  • Memory Standard: DDR4-2666/PC4-21300
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8242T76AV2E24HR-2V
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport HX
Product Model
TN76A-B8242
Product Name
Transport SX TN76AB8242 (B8242T76AV2E24HR-2V)
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket SP3
Processor Supported
EPYC
64-bit Processing
Yes
Chipset Manufacturer
AMD
Memory
Maximum Memory
4 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
32
Controllers
Controller Type
Serial ATA/600
RAID Supported
No
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
  • 25 Gigabit Ethernet
  • Gigabit Ethernet
  • I/O Expansions
    Number of Total Expansion Bays
    26
    Number of Internal 2.5" Bays
    26
    Number of Total Expansion Slots
    2
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    3
    Number of USB 3.0 Ports
    3
    Software
    Operating System Supported
  • Windows Server 2016 Standard x64
  • Red Hat Enterprise linux 7.4 x64
  • SUSE Linux Enterprise Server 12
  • Ubuntu 17.10.1 x64
  • Red Hat Enterprise linux 7.5 x64
  • Power Description
    Input Voltage
    230 V AC
    Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    2400 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.5"
    Width
    17.2"
    Depth
    30.1"
    Weight (Approximate)
    41.89 lb
    Miscellaneous
    Package Contents
    • Transport SX TN76AB8242 (B8242T76AV2E24HR-2V)
    • 1 x Quick Installation Guide
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
