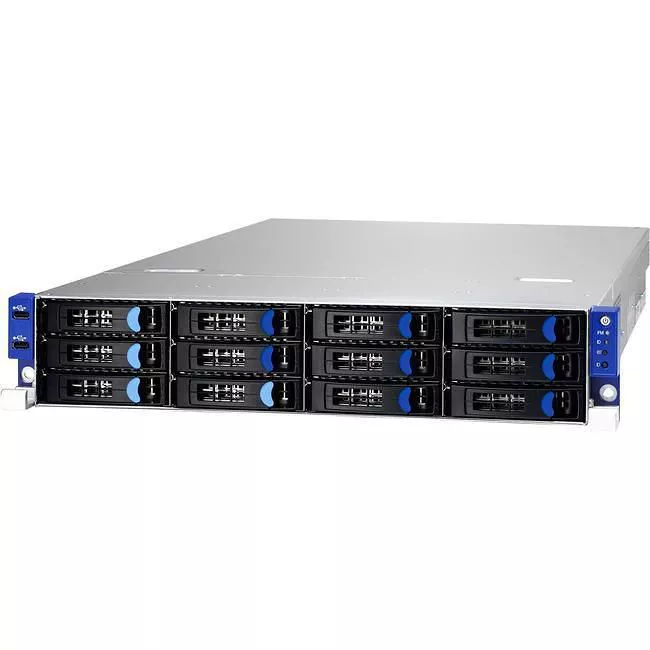

TYAN B8026T70EV10E4HR TN70E-B8026 2U Rack Barebone - 1X AMD Socket SP3 - Aspeed AST2500 Chipset

MPN: B8026T70EV10E4HR
Highlights
  • Number of Processors Supported: 1
  • Processor Socket: Socket SP3
  • Maximum Memory: 1 TB
  • Memory Standard: DDR4-2666/PC4-21300
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
MPN: B8026T70EV10E4HR
Contact sales for pricing

TYAN B8026T70EV10E4HR TN70E-B8026 2U Rack Barebone - 1X AMD Socket SP3 - Aspeed AST2500 Chipset

Highlights
  • Number of Processors Supported: 1
  • Processor Socket: Socket SP3
  • Maximum Memory: 1 TB
  • Memory Standard: DDR4-2666/PC4-21300
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8026T70EV10E4HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport SX
Product Model
TN70E-B8026
Product Name
Transport SX TN70E-B8026
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
Chipset Manufacturer
AMD
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
No
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
14
Number of 3.5" Bays
12
Number of Internal 2.5" Bays
2
Number of Total Expansion Slots
6
Number of PCI Express x8 Slots
6
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
3
Number of SATA Interfaces
16
Software
Operating System Supported
  • Windows Server 2016 Standard x64
  • Red Hat Enterprise linux 7.3 x64
  • Red Hat Enterprise linux 7.4 x64
  • Red Hat Enterprise linux 7.5 x64
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    770 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.4"
    Width
    17.7"
    Depth
    27.6"
    Weight (Approximate)
    41.89 lb
    Miscellaneous
    Package Contents
    • Transport SX TN70E-B8026
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
