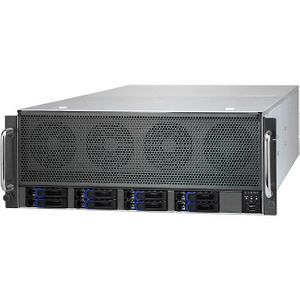

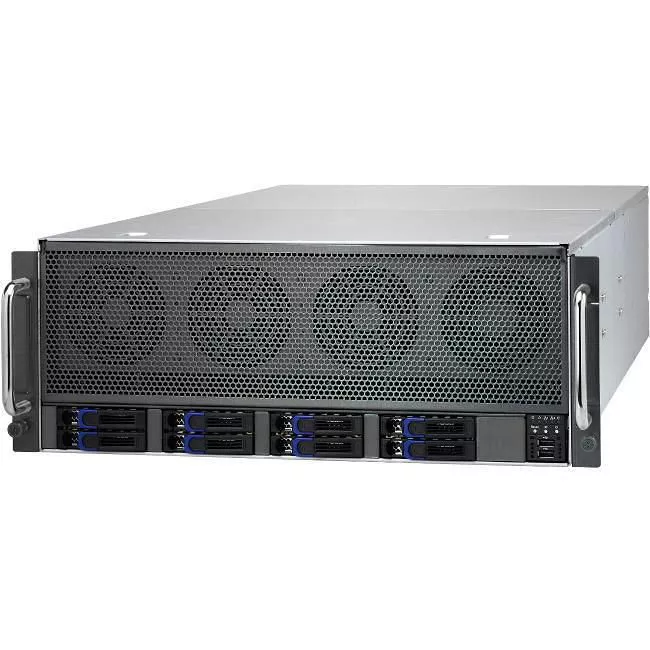

TYAN B7922F76U8HR-4T 4U Rackmount Barebone - Intel C602-J Chipset - 4X Socket R1

MPN: B7922F76U8HR-4T

Product Highlights:

  • Number of Processors Supported: 4
  • Processor Socket: Socket R1 LGA-2011
  • Maximum Memory: 12 TB
  • Memory Standard: DDR4-1866/PC4-14900
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7922F76U8HR-4T
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
FT76B7922
Product Name
FT76B7922 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
4
Processor Socket
Socket R1 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C602-J
Memory
Maximum Memory
12 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-1866/PC4-14900
Number of Total Memory Slots
96
Controllers
Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2400
    Graphics Memory Capacity
    16 MB
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    8
    Number of Internal 2.5" Bays
    8
    Number of Total Expansion Slots
    13
    Number of PCI Express x8 Slots
    13
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of SATA Interfaces
    2
    Software
    Operating System Supported
  • Windows Server 2008 R2 x64
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Red Hat Enterprise Linux 6.5 x64
  • Red Hat Enterprise Linux 7.1 x64
  • Red Hat Enterprise linux 7.3 x64
  • SuSE Linux Enterprise Server 12 x64
  • Ubuntu 14.04 LTS x64
  • Ubuntu 15.10 x64
  • Debian Linux 8.1.0 x64
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    4
    Maximum Power Supply Wattage
    4800 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    17.2"
    Depth
    29.9"
    Miscellaneous
    Package Contents
    • FT76B7922 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    • 1 x P3250USR-8I LSI SAS Mezz Card
    • 1 x P1210C-2T Intel 10GbE LAN Mezz Card
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
