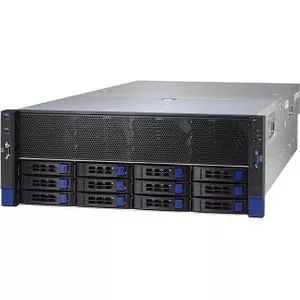

TYAN B7119F83V12HR-2T-NS Thunder HX FT83-B7119 Barebone - Intel C621 - 2x LGA-3647 - 10x GPU

MPN: B7119F83V12HR-2T-NS
Highlights
  • Number of Processors Supported: 2
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2933/PC4-23466
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
MPN: B7119F83V12HR-2T-NS
Contact sales for pricing

TYAN B7119F83V12HR-2T-NS Thunder HX FT83-B7119 Barebone - Intel C621 - 2x LGA-3647 - 10x GPU

Highlights
  • Number of Processors Supported: 2
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2933/PC4-23466
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7119F83V12HR-2T-NS
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder HX
Product Model
FT83-B7119
Product Name
Thunder HX FT83-B7119 10-GPU Server Platform for AI/ML/DNN Workloads
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
  • 64-bit Processing
    Yes
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory
    3 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2933/PC4-23466
    Number of Total Memory Slots
    24
    Intel Optane Memory Ready
    Yes
    Controllers
    Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    12
    Number of 3.5" Bays
    12
    Number of Total Expansion Slots
    12
    Number of PCI Express x16 Slots
    12
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    4
    Software
    Operating System Supported
  • Windows Server 2012 R2 Datacenter x64
  • Windows Server 2016
  • Windows Server 2019 Standard x64
  • Red Hat Enterprise Linux 6.9 x64
  • Red Hat Enterprise linux 7.3 x64
  • Red Hat Enterprise linux 7.4 x64
  • Red Hat Enterprise Linux 7.6 x64
  • Ubuntu 16.04 x64
  • CentOS 7.6 x64
  • Power Description
    Input Voltage
    230 V AC
    Number of Power Supplies Installed
    4
    Maximum Power Supply Wattage
    4800 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    17.3"
    Depth
    32.7"
    Weight (Approximate)
    86.64 lb
    Miscellaneous
    Package Contents
    • Thunder HX FT83-B7119 10-GPU Server Platform for AI/ML/DNN Workloads
    • 1 x Quick Installation Guide
    Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • RoHS-6
  • Warranty
    Limited Warranty
    3 Year
