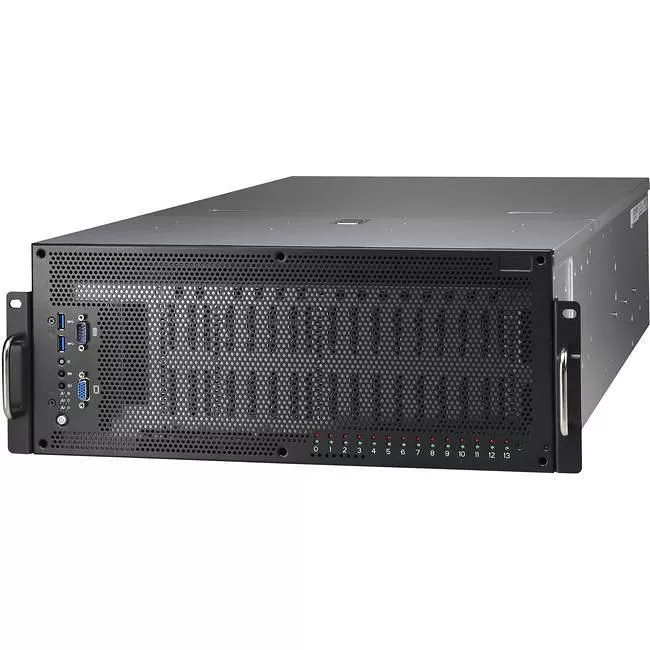

TYAN B7119F77V14HR-2T55-N Thunder HX FA77B7119 10 GPU Server Barebone

MPN: B7119F77V14HR-2T55-N

Product Highlights:

  • Number of Processors Supported: 2
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2666/PC4-21300
$4,785.15
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7119F77V14HR-2T55-N
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder HX
Product Model
FA77-B7119
Product Name
Thunder HX FA77B7119 (B7119F77V14HR-2T55-N)
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • 64-bit Processing
    Yes
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory
    3 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    24
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
  • 10 Gigabit Ethernet
  • Gigabit Ethernet
  • I/O Expansions
    Number of Total Expansion Bays
    14
    Number of Internal 2.5" Bays
    14
    Number of Total Expansion Slots
    13
    Number of PCI Express x16 Slots
    13
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    4
    Number of SATA Interfaces
    10
    Software
    Operating System Supported
  • Windows Server 2012 R2 Datacenter x64
  • Windows Server 2016
  • Red Hat Enterprise Linux 6.9 x64
  • Red Hat Enterprise linux 7.3 x64
  • Red Hat Enterprise linux 7.4 x64
  • Ubuntu 16.04 LTS x64
  • Windows Server 2019 Standard x64
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    4
    Maximum Power Supply Wattage
    4800 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    17.2"
    Depth
    30.3"
    Weight (Approximate)
    60.63 lb
    Miscellaneous
    Package Contents
    • Thunder HX FA77B7119 (B7119F77V14HR-2T55-N)
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
