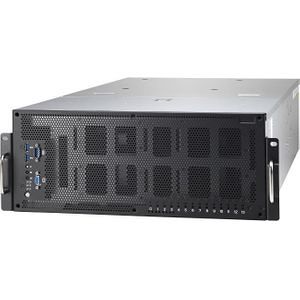

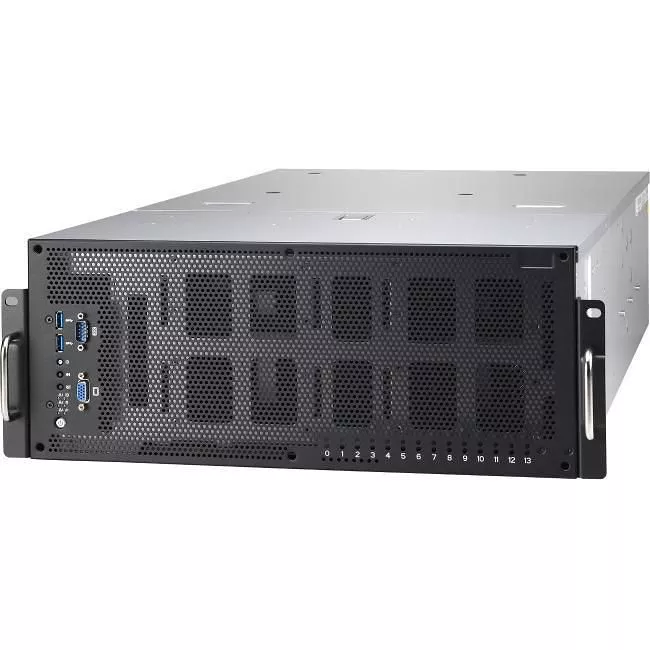

TYAN B7109F77DV4HR-8X-2T-F 4U Rack Barebone - Intel C621 Chipset - 2X Socket F LGA3647

MPN: B7109F77DV4HR-8X-2T-F

Product Highlights:

  • Number of Processors Supported: 2
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2666/PC4-21300
Contact sales for pricing
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7109F77DV4HR-8X-2T-F
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder HX
Product Model
FT77DB7109
Product Name
Thunder HX FT77DB7109 (B7109F77DV4HR-8X-2T-F)
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Bronze
  • Xeon Silver
  • 64-bit Processing
    Yes
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory
    3 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    24
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
  • 10 Gigabit Ethernet
  • Gigabit Ethernet
  • I/O Expansions
    Number of Total Expansion Bays
    4
    Number of 3.5" Bays
    4
    Number of Total Expansion Slots
    17
    Number of PCI Express x8 Slots
    16
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    4
    Software
    Operating System Supported
  • Windows Server 2016 x64
  • Windows Server 2012 R2 x64
  • Windows 10 x64
  • Red Hat Enterprise Linux 6.9 x64
  • Red Hat Enterprise linux 7.3 x64
  • Red Hat Enterprise linux 7.4 x64
  • CentOS 6.9 x64
  • CentOS 7.3 x64
  • CentOS 7.4 x64
  • SuSE Linux Enterprise Server 11
  • SUSE Linux Enterprise Server 12
  • Ubuntu 16.04.3 LTS x64
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    3
    Maximum Power Supply Wattage
    3200 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    17.2"
    Depth
    30.3"
    Weight (Approximate)
    57.32 lb
    Miscellaneous
    Package Contents
    • Thunder HX FT77DB7109 (B7109F77DV4HR-8X-2T-F)
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
