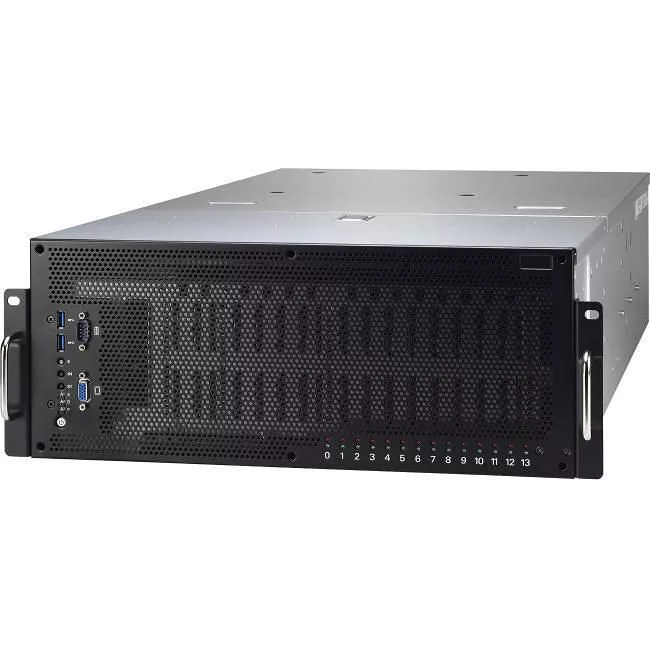

TYAN B7109F77DV14HR-8X-2T-F 4U Rackmount Barebone - Intel C621 Chipset - 2X Socket F LGA 3647

MPN: B7109F77DV14HR-8X-2T-F
TYAN B7109F77DV14HR-8X-2T-F 4U Rackmount Barebone - Intel C621 Chipset - 2X Socket F LGA 3647
Out of Stock
Highlights
  • Number of Processors Supported: 2
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2666/PC4-21300
Contact sales for pricing
Please log in to add an item to your wishlist.
Non-cancelable and non-returnable
B2B pricing options available.

SabrePC B2B Account Services

Save instantly and shop with assurance knowing that you have a dedicated account team a phone call or email away to help answer any of your questions with a B2B account.

  • Business-Only Pricing
  • Personalized Quotes
  • Fast Delivery
  • Products and Support
Need Help? Let's talk about it.
Please log in to add an item to your wishlist.
TYAN B7109F77DV14HR-8X-2T-F 4U Rackmount Barebone - Intel C621 Chipset - 2X Socket F LGA 3647
MPN: B7109F77DV14HR-8X-2T-F
Contact sales for pricing
Non-cancelable and non-returnable

TYAN B7109F77DV14HR-8X-2T-F 4U Rackmount Barebone - Intel C621 Chipset - 2X Socket F LGA 3647

Out of Stock
Highlights
  • Number of Processors Supported: 2
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2666/PC4-21300
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7109F77DV14HR-8X-2T-F
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder HX
Product Model
FT77DB7109
Product Name
Thunder HX FT77DB7109 (B7109F77DV14HR-8X-2T-F)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
    • 64-bit Processing
    Yes
    Chipset
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory Supported
    3 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    24
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
  • 10 Gigabit Ethernet
  • Gigabit Ethernet
    • I/O Expansions
    Number of Total Expansion Bays
    14
    Number of Internal 2.5" Bays
    14
    Total Number of Expansion Slots
    17.0
    Number of PCI Express x8 Slots
    16
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    14
    Operating System
    Operating System Supported
  • Windows Server 2016 x64
  • Windows Server 2012 R2 x64
  • Windows 10 x64
  • Red Hat Enterprise Linux 6.9 x64
  • Red Hat Enterprise linux 7.3 x64
  • Red Hat Enterprise linux 7.4 x64
  • CentOS 6.9 x64
  • CentOS 7.3 x64
  • CentOS 7.4 x64
  • SuSE Linux Enterprise Server 11
  • SUSE Linux Enterprise Server 12
  • Ubuntu 16.04.3 LTS x64
    • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    3
    Maximum Power Supply Wattage
    3200 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    17.2"
    Depth
    30.3"
    Weight (Approximate)
    57.32 lb
    Miscellaneous
    Package Contents
    • Thunder HX FT77DB7109 (B7109F77DV14HR-8X-2T-F)
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year

    Specifications
