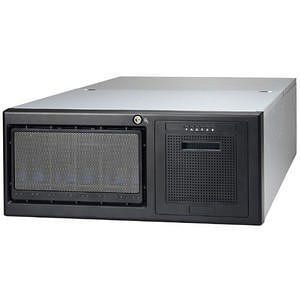

TYAN B7025F48W8HR 4U Rack-mount Barebone - Intel 5520 Chipset - Socket B LGA-1366 - 2 x CPU Support

MPN: B7025F48W8HR

Product Highlights:

  • Number of Processors Supported: 2
  • Processor Socket: Socket B LGA-1366
  • Maximum Memory: 64 GB
  • Memory Standard: DDR3-1333/PC3-10600
$1,801.98
Please log in to add an item to your wishlist.
Need Help? Let's talk about it.
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7025F48W8HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Series
FT48
Product Model
B7025F48W8HR
Product Name
B7025F48W8HR Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
Chipset Manufacturer
Intel
Chipset Model
5520
Memory
Maximum Memory
64 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Number of Total Memory Slots
8
Controllers
Controller Type
Serial Attached SCSI (SAS)
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2050
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
11
Number of External 5.25" Bays
3
Number of 3.5" Bays
8
Number of Total Expansion Slots
7
Number of PCI Slots
1
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Network (RJ-45)
Yes
VGA
Yes
Software
Operating System Supported
  • Windows XP Professional
  • Windows XP Professional x64
  • Windows Vista Ultimate
  • Windows Vista Ultimate x64
  • Windows Server 2003 Standard
  • Windows Server 2003 Standard x64
  • Windows Server 2008
  • Windows Server 2008 x64
  • Windows 7
  • Windows 7 x64
  • Power Description
    Input Voltage
  • 110 V AC
  • 220 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    1300 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    16.8"
    Depth
    27.5"
    Miscellaneous
    Additional Information

    QuickPath Technology:

    • QuickPath Interconnect supports up to 6.4 GT/s

    Expansion Slot Detail:

    • PCI Express x8 slot has the bus speed of PCI Express x4
    Environmentally Friendly
    Yes
    Environmental Certification
  • 80 Plus
  • RoHS-6
  • Warranty
    Limited Warranty
    3 Year
