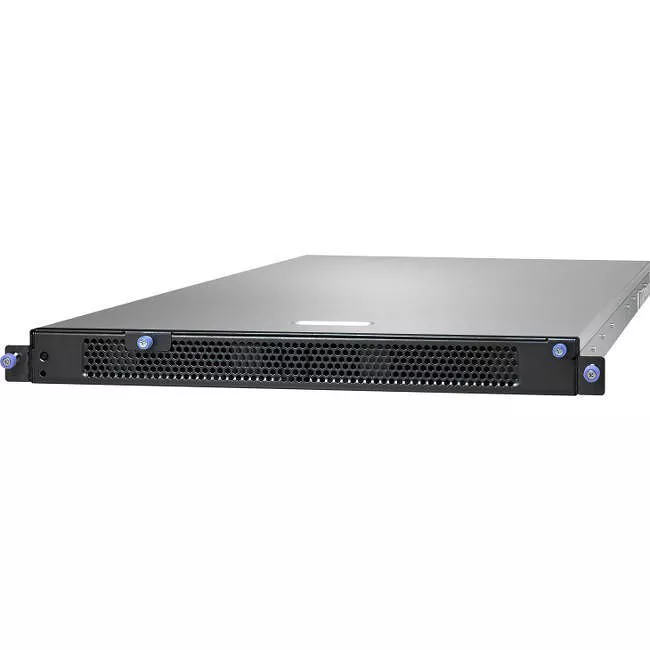

TYAN B5630G86CV12 Thunder SX GT86C-B5630 1U Rackmount Barebone - Intel Chipset - Socket P LGA-3647

MPN: B5630G86CV12
Availability: In Stock

Product Highlights:

  • Number of Processors Supported: 1
  • Processor Socket: Socket P LGA-3647
  • Maximum Memory: 1.50 TB
  • Memory Standard: DDR4-2666/PC4-21300
$943.55
Please log in to add an item to your wishlist.
In Cart: 0
B2B pricing options available.

SabrePC B2B Account Services

Save instantly and shop with assurance knowing that you have a dedicated account team a phone call or email away to help answer any of your questions with a B2B account.

  • Business-Only Pricing
  • Personalized Quotes
  • Fast Delivery
  • Products and Support
Need Help? Let's talk about it.
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B5630G86CV12
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder SX
Product Model
GT86C-B5630
Product Name
GT86C-B5630 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
  • 64-bit Processing
    Yes
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory
    1.50 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    12
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    14
    Number of 3.5" Bays
    12
    Number of Internal 2.5" Bays
    2
    Number of Total Expansion Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    3
    Number of USB 3.0 Ports
    3
    Number of SATA Interfaces
    14
    Software
    Operating System Supported
  • Windows Server 2008
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • Windows Server 2008 R2
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Maximum Power Supply Wattage
    500 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.3"
    Depth
    33.9"
    Weight (Approximate)
    23.15 lb
    Miscellaneous
    Package Contents
    • GT86C-B5630 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
