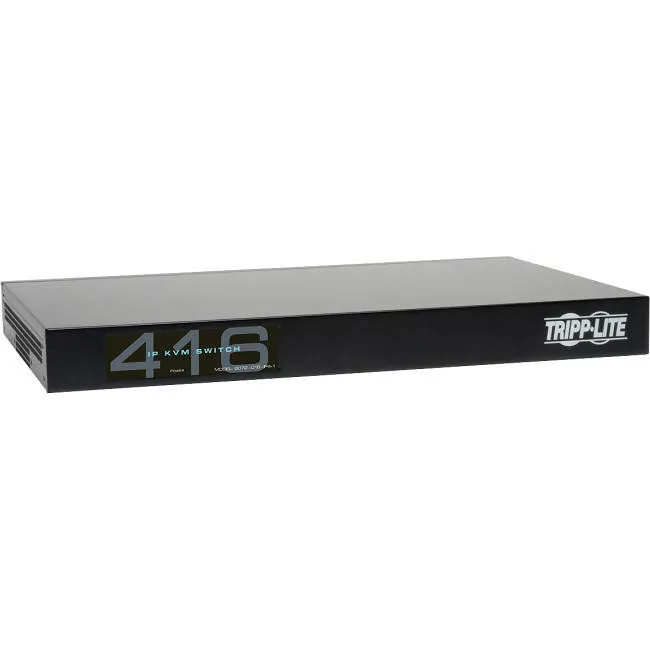

Tripp Lite B072-016-IP4 16-Port Cat5 IP KVM Switch 1 Local 4 Remote User 1URM Rackmount
MPN # B072-016-IP4
UPC # 037332177254
Availability: In Stock
Condition: New
Product highlights:
  • KVM Technology: Digital
  • Maximum Video Resolution: 1920 x 1080
  • Number of Network (RJ-45) Ports: 20
  • Rack Height: 1U
$2,203.26
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.
Tripp Lite's B072-016-IP4 KVM Switch is the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available. The B072-016-IP4 uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 16 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to four remote users can each log on and access different ports simultaneously.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-016-IP4.
General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
B072-016-IP4
Manufacturer Website Address
http://www.tripplite.com
Brand Name
Tripp Lite
Product Line
NetCommander
Product Model
B072-016-IP4
Product Name
16-Port, 4+1 User NetCommander Cat5 IP KVM Switch
Product Type
KVM Switchbox
Technical Information
KVM Technology
Digital
Number of Computers Supported
16
Number of Local Users Supported
1
Number of Remote Users Supported
4
Maximum Operating Distance
100 ft
Video
Graphic Mode
Full HD
Maximum Video Resolution
1920 x 1080
Interfaces/Ports
Network (RJ-45)
Yes
USB
Yes
VGA
Yes
Number of Network (RJ-45) Ports
20
Number of USB Ports
2
Number of VGA Ports
1
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.3"
Depth
11"
Weight (Approximate)
7.75 lb
Miscellaneous
Package Contents
  • 16-Port, 4+1 User NetCommander Cat5 IP KVM Switch
  • Rackmount Hardware
  • 2 x Power Cords
Platform Supported
  • PC
  • Linux
  • Certifications & Standards
    • UL 60950-1 (USA)
    • CSA (Canada)
    • FCC Part 15 Class A
    • CE IEC 60950-1
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Warranty
    Limited Warranty
    3 Year
