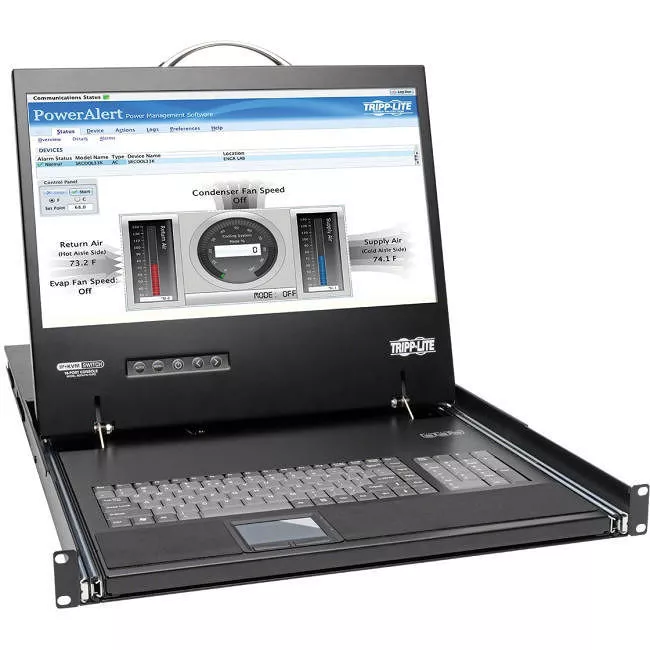

Tripp Lite B070-016-19-IP2 16-Port 1U Rack Console IP KVM Switch 2+1 Users w/ 19 in. Screen
MPN # B070-016-19-IP2
UPC # 037332177315
Condition: New
Product highlights:
  • KVM Technology: Digital
  • Number of Network (RJ-45) Ports: 2
  • Platform Supported: PC | Linux
  • Product Type: LCD Rack Console
Need Help?   let's talk about it.

Tripp Lite's B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use. Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.


Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad

  • Mounts in 1U of space in EIA-standard 19 in. rack
  • Connects up to 16 computers/servers up to 100 ft. away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
  • Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N
  • Fast Virtual Media KVM system: U.S. Patent #9,417,720
  • BIOS-level control of any server brand and model

IP Remote Access for Fewer Trips to the Server Room

  • Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection
  • Non-browser client that can bypass browser-related Java security prompts is available
  • Up to 3 users (1 local, 2 remote) can sign in simultaneously
  • Up to 5 users can share a single session
  • Supports both IPv4 and IPv6
  • Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail

Simplifies IT Tasks

  • Users can switch between ports via on-screen display, hotkeys or remote toolbar
  • Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
  • Assign individual ports to an IP PDU port to power on/off the server connected to that port
  • Virtual Media allows.iso file to be mounted to target server and accessed directly
  • Supports RADIUS and LDAP/S authentication
  • Log tracks events on your installation

Large 19 in. LCD Screen

  • Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
  • DDC emulation allows for optimal output to LCD

Advanced Security Features

  • Multi-level password protection-create administrator accounts with full access and user accounts with limited access
  • 128-bit AES and HTTPS encryption for highest security standards
General Information
Tripp Lite
Manufacturer Part Number
Manufacturer Website Address
Brand Name
Tripp Lite
Product Line
Product Model
Product Name
B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
Product Type
LCD Rack Console
Technical Information
KVM Switch
KVM Technology
Number of Computers Supported
Device Type
LCD Rack Console
Display & Graphics
Screen Size
Display Screen Type
Screen Resolution
1366 x 768
Input Devices
Pointing Device Type
Network (RJ-45)
PS/2 Port
Number of Network (RJ-45) Ports
Number of USB Ports
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
  • Physical Characteristics
    Weight (Approximate)
    28.46 lb
    Package Contents
    • B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
    • C13 to NEMA 5-15P Power Cord, 6 ft.
    • Rack-Mounting Hardware
    • Quick Start Guide
    Certifications & Standards
    • UL 60950-1 (USA)
    • CAN/CSA (Canada)
    • FCC Part 15 Class A
    • CE
    • IEC 60950-1
    Platform Supported
  • PC
  • Linux
  • Environmentally Friendly
    Environmental Certification
    TAA Compliant
    Limited Warranty
    1 Year
