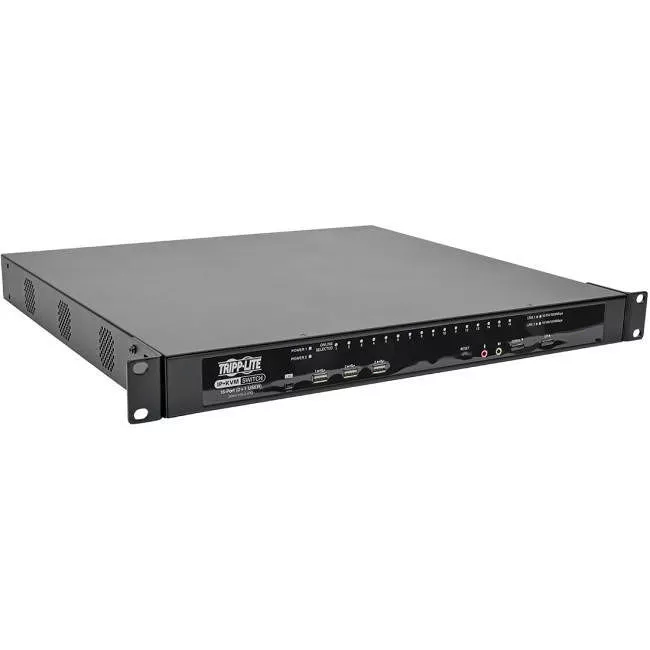

Tripp Lite B064-016-02-IPG 16-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA
MPN # B064-016-02-IPG
UPC # 037332151513
Availability: In Stock
Condition: New
Product highlights:
  • KVM Technology: Digital
  • Maximum Video Resolution: 1600 x 1200
  • Number of Network (RJ-45) Ports: 16
  • Rack Height: 1U
$2,886.27
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.

Tripp Lite's 16-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to 3 (1 Local and 2 Remote) independent, simultaneous users. A single unit occupies a mere 1U of rack space, yet can control up to 16 directly connected computers, and a maximum of 256 computers when a second level of B064-016 KVM switches are cascaded. A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Other features include dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing. 3 year limited warranty.

General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
B064-016-02-IPG
Manufacturer Website Address
http://www.tripplite.com
Brand Name
Tripp Lite
Product Line
NetDirector
Product Model
B064-016-02-IPG
Product Name
NetDirector KVM Switch
Product Type
KVM Switchbox
Technical Information
KVM Technology
Digital
Number of Computers Supported
16
Number of Local Users Supported
1
Number of Remote Users Supported
2
Daisy Chain Supported
Yes
Video
Graphic Mode
UXGA
Maximum Video Resolution
1600 x 1200
Interfaces/Ports
Network (RJ-45)
Yes
PS/2 Port
Yes
USB
Yes
Number of Network (RJ-45) Ports
16
Number of PS/2 Ports
2
Number of USB Ports
2
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.8"
Width
17"
Depth
16"
Weight (Approximate)
17 lb
Miscellaneous
Package Contents
  • NetDirector KVM Switch
  • 2 x C5 to 5-15P Power Cords
  • CD (Includes: Owner's Manual, Quick Start Guide, Device Files)
  • Quick Start Guide
  • RJ45 to DB9 Adapter
  • USB/PS/2 Combo Console Cable Kit
  • Grounding Wire
  • Set of Foot Pads
  • Rackmount Hardware
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
