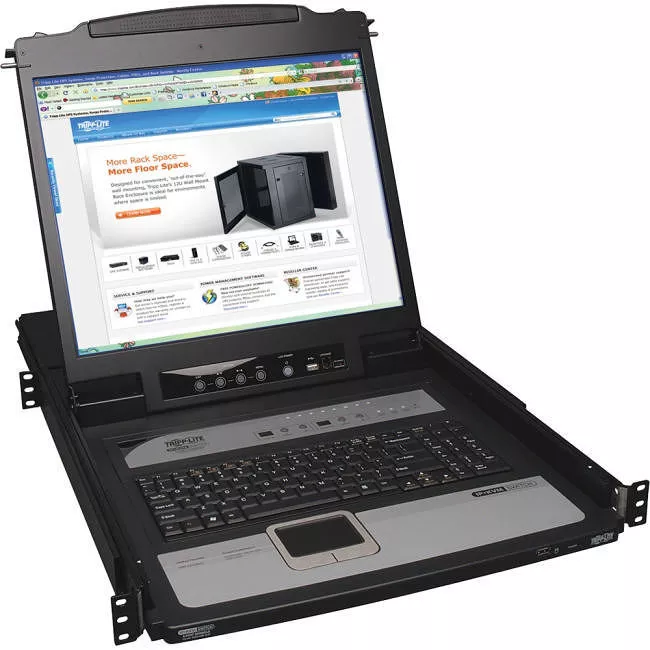

Tripp Lite B020-U08-19-IP 8-Port Rack Console KVM Switch built in IP w/ 19" LCD 1U
MPN # B020-U08-19-IP
UPC # 037332152886
Availability: In Stock
Condition: New
Product highlights:
  • KVM Technology: Digital
  • Platform Supported: PC | Mac
  • Product Type: LCD Rack Console
  • Condition: New
$2,181.45
B2B Pricing options available. Get Better Pricing.
Need Help?   let's talk about it.
Tripp Lite's B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.

The B020-U08-19-IP has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment.

This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.
General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
B020-U08-19-IP
Manufacturer Website Address
http://www.tripplite.com
Brand Name
Tripp Lite
Product Line
NetDirector
Product Model
B020-U08-19-IP
Product Name
8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD
Product Type
LCD Rack Console
Technical Information
KVM Switch
Yes
KVM Technology
Digital
Number of Computers Supported
8
Device Type
LCD Rack Console
Display & Graphics
Screen Size
19"
Display Screen Type
LCD
Screen Mode
SXGA
Screen Resolution
1280 x 1024
Input Devices
Keyboard
Yes
Pointing Device Type
TouchPad
Interfaces/Ports
USB
Yes
Number of USB Ports
2
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
  • Physical Characteristics
    Color
    Black
    Material
    Steel
    Height
    1.7"
    Width
    18.9"
    Depth
    27"
    Weight (Approximate)
    31 lb
    Miscellaneous
    Package Contents
    • 8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD
    • 2 x 6 ft. USB/PS2 Combo KVM Cable Kits
    • USB/PS2 Combo Console Cable Kit
    • Grounding Wire
    • RJ11 to DB9 firmware upgrade cable
    • Rackmount Hardware
    • C13 to 5-15P Power Cord
    • CD with Owners Manual, Quick Start Guide, and Device Files
    • Quick Start Guide
    Certifications & Standards

    UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, EN 60950-1

    Platform Supported
  • PC
  • Mac
  • Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • WEEE
  • Warranty
    Limited Warranty
    1 Year
